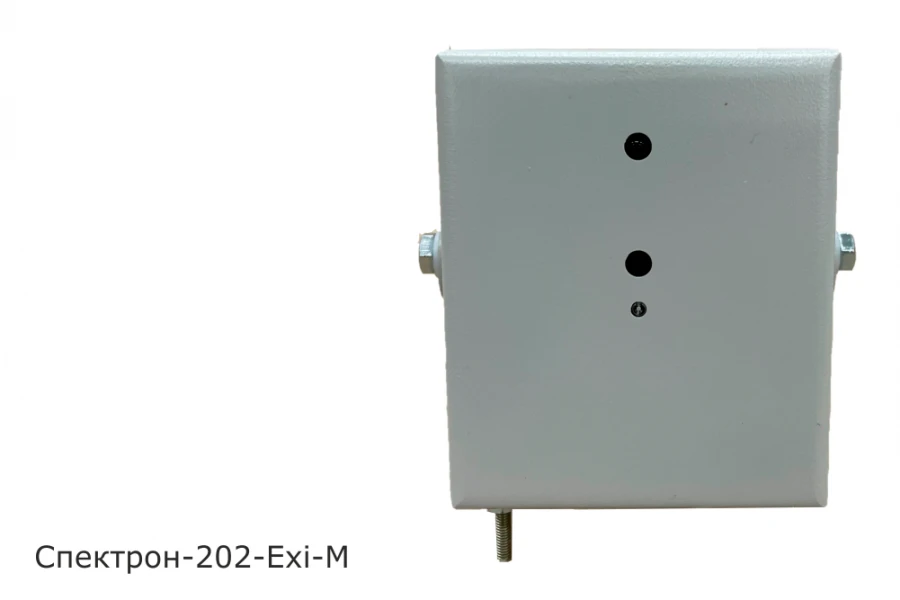

Spectron-202-Exi-M Flame Detector Available for Import

Spectron-202-Exi-M Flame Detector for Effective Fire Safety

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Double-band 2IC detector fire flame Spectron series 202-Exi. Category of noise immunity - 2. For enclosed spaces.

Viewing angle of 90 °. Flame detection range - 25 m on TP5 and TP6. 4 modes of operation with different sensitivity and detection range.

IP66/IP68. Explosion protection marking. Ex ia I Ma X/0Ex ia IIC T6 Ga X/Ex ia IIIC T85ºC Da X.

Enclosure - galvanised steel. Overall dimensions (HxWxG) 123x109x104 mm. Temperature range from - 55 to + 85°C.

Specifications

Weight
700 year
Overall dimensions
123x109x104 mm
Viewing angle
Flat grinder, Specialised grinder
Recovery time
2
Degree of protection of the shell, IP
68
Operating temperature range
85 °C
Operating temperature
(55);+85 °C
Designation
FIRE FLAME DETECTOR IP330-1-1
Assignment
Recommended for fire alarm systems and fire extinguishing systems
Explosion protection marking
RO Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85ºC Da X
Housing material
Galvanized steel
Power supply voltage
9...26 V
Sensitivity levels
Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
