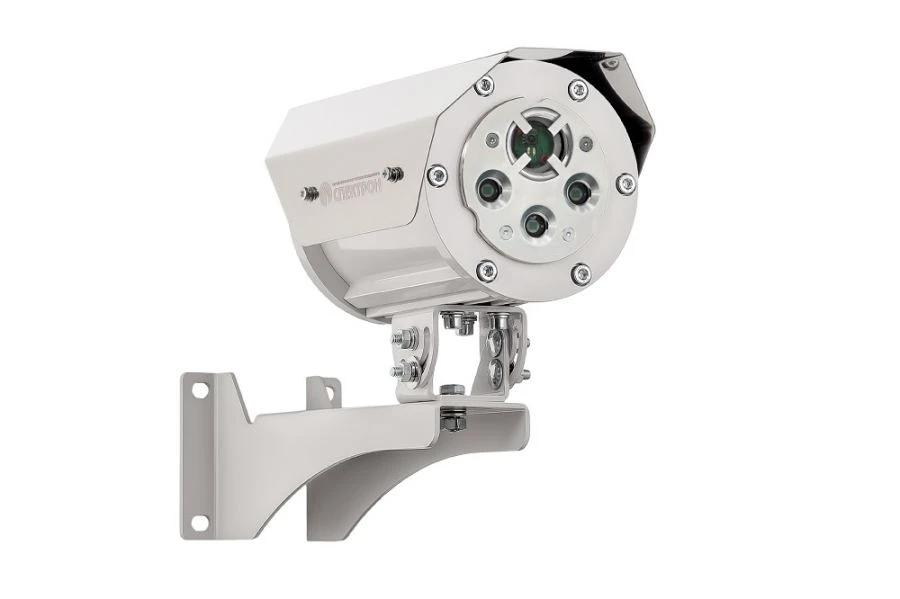

Fire Flame Detector Spectron-804-Exd-A-HART for High Interference Environments

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Heavy optical interference immunity. They are used in open areas and in closed rooms. Have the following functions: self-testing, dust function, heated optics, transmission of the signal failure, adjustment with 4 modes of range and 4 modes of sensitivity, galvanic isolation between the detector power supply and heating power supply, multi-cascade lightning protection, the function of changing the settings with a tuning light.

Detection range of TP-5 60 metres, TP-6 50 metres, corresponds to class 1. Viewing angle of 90 °. Inertia 5, 10, 15, 25 s (user selectable).

Upit - 18..26V. Idezh - 10mA, Ipozh - 30mA. with heating up to 290mA.

Temperature range: -55°? to +90°?, with heating from -70°? to + 90°?, short-term operation of the detector at ambient temperature up to +135°?

is possible. IP66/IP68. 4-wire connection.

Overall dimensions (HxWxG) 255x140x350.

Specifications

Weight

4 kg

Overall dimensions

255x140x350 mm

Viewing angle

Flat grinder, Specialised grinder

Type of climatic version according to GOST 15150

UHL1, OM1

Digital interface

HART

Degree of protection of the shell, IP

Operating temperature range

Flat grinder, Specialised grinder °C

Operating temperature

(55);+90 °C

Designation

IR/UV MULTI-BAND FLAME DETECTOR IP329/330

Assignment

Recommended for fire alarm systems and fire extinguishing systems

Explosion protection marking

1Ex db IIC T6...T4 Gb X / Ex tb IIIC T85ºC...T135ºC Db X

Housing material

Aluminum alloy

Power supply voltage

18...26 V

Sensitivity levels

T5/T6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
