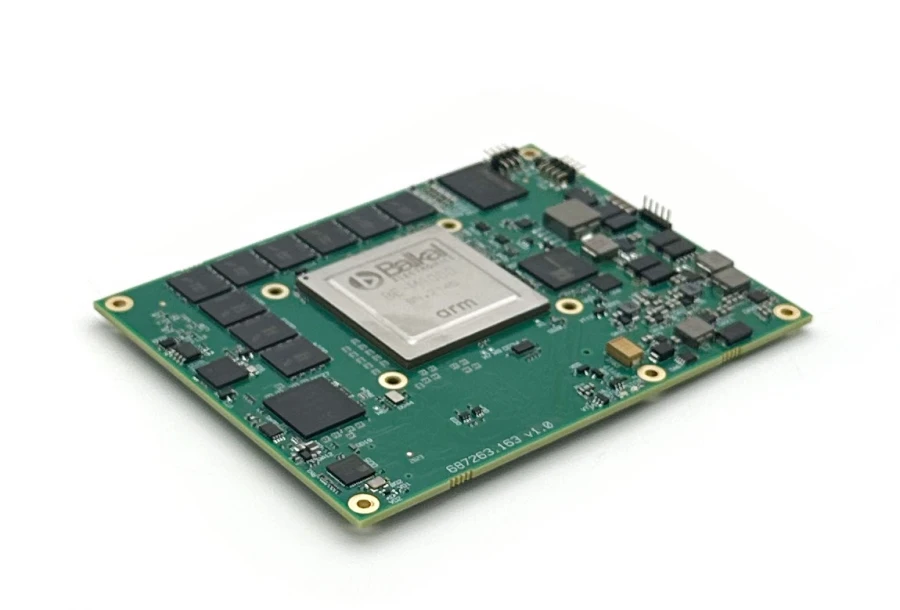

Processor Module CPC1309 - COM Express Basic Standard

Available for Import

Processor Module CPC1309 for High-Performance Graphic Solutions

Advanced Computing Devices

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The processor module CPC1309, made in COM Express Basic standard, is a platform based on the processor with integrated graphics core of domestic development, which allows to get a modern set of functionalities based on PCI Express 3.0, SATA 3.0, USB 3.1, DisplayPort 1.2a.

Specifications

Processor

Baikal-M (1.5 GHz)

RAM

один канал до 16 ГБ 64-бит DDR4-2400 МГц с поддержкой корректирующих кодов (ECC); 16 Гбайт (для CPC1309-01); 8 Гбайт (для CPC1309-02)

Video outputs

Display Port Interface (resolution up to 2560 × 1440@60Hz, 24-bit colour depth); LVDS Interface (resolution up to 2560 × 1440@60Hz, 24-bit colour depth)

PCI Express bus

One PCIe Gen3 x8 interface; One PCIe Gen3 x4 interface; Four PCIe Gen2 x1 interfaces.

SATA interface

Two SATA III ports

eMMC/SD interface

Soldered eMMC drive with 5.1 protocol support

Ethernet interface

One 10/100/1000 Mbit port

USB interface

Two USB3.0 ports; 4/6 USB2.0 ports

Loading FLASH

2x128Mbit SPI-Flash

Non-volatile memory

32 Kbytes for user data storage, implemented on a separate I2C bus

Real Time Clock

External RTC chip with lithium battery power supply located on the carrier board

Hardware monitor

Power on/off sequence control; Power supply voltage monitoring; CPU, PCB temperature monitoring; Fan control.

Indication

On the board there are LED of the module operation mode and LED of the storages activity.

Operating temperature range

Minus 40 ºC to plus 85 ºC

Power supply voltage

+12 ? ± 5%

Consumption current

3,5 ?

Software compatibility with OS

Linux Debian

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
