PicoS-T Computing Module (MPRCN.467444.002)

Available for Import

PicoS-T Computing Module for Compact Applications - MPRCN.467444.002

Advanced Computing Devices

Manufacturer: MACRO EMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

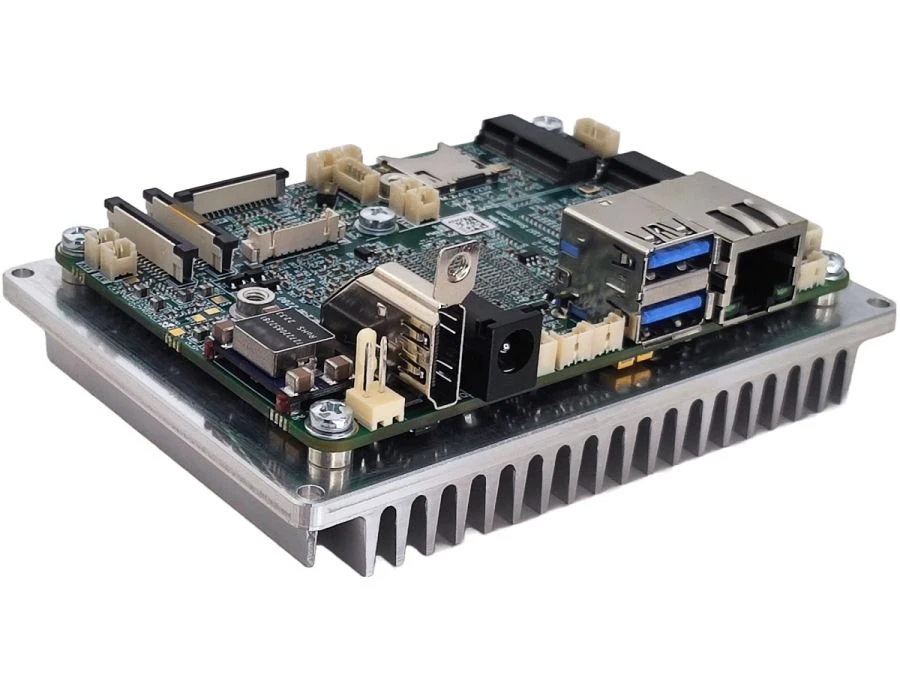

Module computing "PicoS-T" (hereinafter - the module) is a device of SBC class in Pico-ITX form factor on Russian processor 1892VA018, "SKIF" from JSC NPC "Elvis" with Arm A53 cores supplemented with DSP (NPU) co-processor Elcore-50. Linux operating system. The module is supplied with installed thermal package of passive cooling. The module is designed to control terminals, ATMs, access control systems, etc.

Specifications

RAM

ROM

Dimensions

112x79x43,7 mm

Processor

1892VA018 SKIF

Core

4xA53

AI Unit (DSP+NPU)

1,2 TOPS

Power supply voltage

B1/B8 2100/900 MHz V

RedOS, AltLinux, Custom Linux (Buildroot)

Network interfaces

Ethernet 10/100/1000M, RJ-45

Video interfaces

HDMI 1.4

Other interfaces

SSD (m.2 2280 KEY-M)

Discrete inputs and outputs

TTL 3.3V - 8 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
