Fabric Measuring and Folding Machine Model C02.2 for Efficient Fabric Handling

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

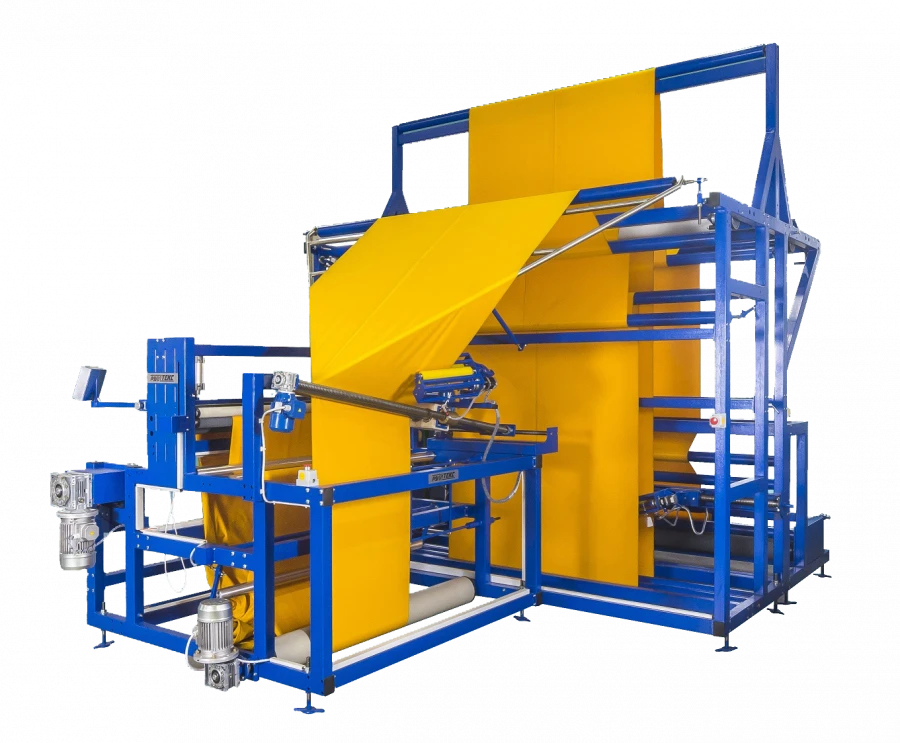

Machine double stacker mod. C02.2 is designed for doubling of fabric with its subsequent winding into a flat roll and length measurement. The machine for work with rolls of 2400 mm width provides work with rolls of fabric with diameter up to 1000 mm and weight up to 500 kg and winds twinned fabric into rolls with diameter up to 400 mm and weight up to 60 kg.

The 3200 mm wide bale handling machine handles bales of up to 400 kg and up to 1000 mm in diameter. The 4200 mm wide bale handling machine ensures handling of material bales weighing up to 1200 kg and with a diameter of up to 1500 mm. The machine is designed to work with non-elastic fabrics of bedding group and is supplied to weaving and finishing mills as well as to factories producing nonwovens (spunbond, geotextile).

Specifications

Mark

Rolltex

Maximum bale diameter at inlet

1000 mm

Maximum bale weight at the inlet

500 kg

Maximum output bale diameter

400 mm

Maximum output bale weight

60 kg

Material centring system

as standard. fabric guides.

Edge alignment unit

As standard. fabric guides.

Passport, operating and maintenance instructions

supplied with equipment

Rewinding scheme

from a cylindrical bale wound on a cardboard bobbin into a bale of material folded in two without a cardboard bobbin inside.

Winding material

Winding of material is carried out on pneumatic shaft with diameter 150 mm

Maximum bale width at the inlet

2400 mm

Maximum output bale width

1200 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
