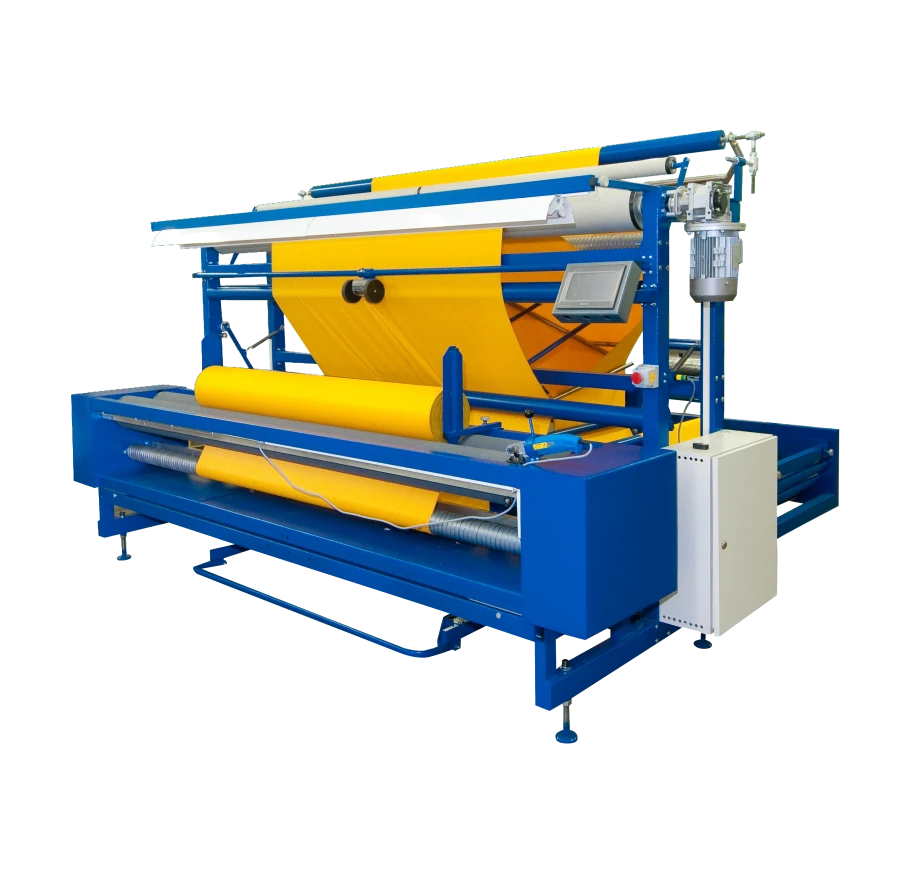

Material Unwinding Machine C01.1 for Efficient Unrolling and Rewinding

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machine rewinding machine for unfolding material model C01.1 is designed for unfolding the material, folded in half and wound into a roll, and twisting it into a roll. The machine provides rewinding of material up to 600 mm in diameter and weighing up to 90 kg into rolls on a cardboard sleeve. It is available in widths up to 2500 mm, up to 3200 mm and up to 3500 mm. The machine is equipped as standard with automatic edge levelling of the finished roll, electronic metre counter MK1 Touch Rolltex, two spreading rollers for smoothing the material across the width, roll end stop sensor, etc. Additionally, it can be equipped with a viewing screen with lower illumination, additional upper illumination, manual or automatic cut-off knife, roll density adjustment system, Astra software for accounting of unwound materials, weighing system for winding the roll, adjustment of the illumination width.

Specifications

Mark

Rolltex

Type of rewinding

from a bale folded in two and wound into a roll into an unrolled bale on a cardboard bobbin with an outer diameter of at least 40 mm.

Material type

non-elastic woven materials

Diameter of the roll at the inlet end

600 mm

Diameter of the bale at the outlet

400 mm

Inlet roll width

1250 mm

Roll width at outlet

2500 mm

Rewinding speed, m/min

Rewind speed is infinitely variable from 0 to 50 m/min.

Weight of bale

Flat grinder, Specialised grinder kg

Electronic programmable counter for material length measurement

The electronic meter meter allows you to: use conversion factors that allow you to increase the accuracy of measuring materials of different densities and stretching; - non-volatile power supply of the meter ensures the preservation of the worked

Automatic bale edge leveling system

function ensures that the edge of the material roll is aligned to the base side (except for curled edge webs).

Touch screen rotary operator panel

the machine is controlled from the operator's touch panel, which is designed in Russian.

Spreading width drive rollers

Necessary for spreading materials before winding into a roll. not suitable for spreading heavily creased folds and curling selvedges.

Front foot pedal across the entire width of the machine

Front foot pedal is used for operative stopping or starting of the machine in case of defect detection or other technological reasons.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
