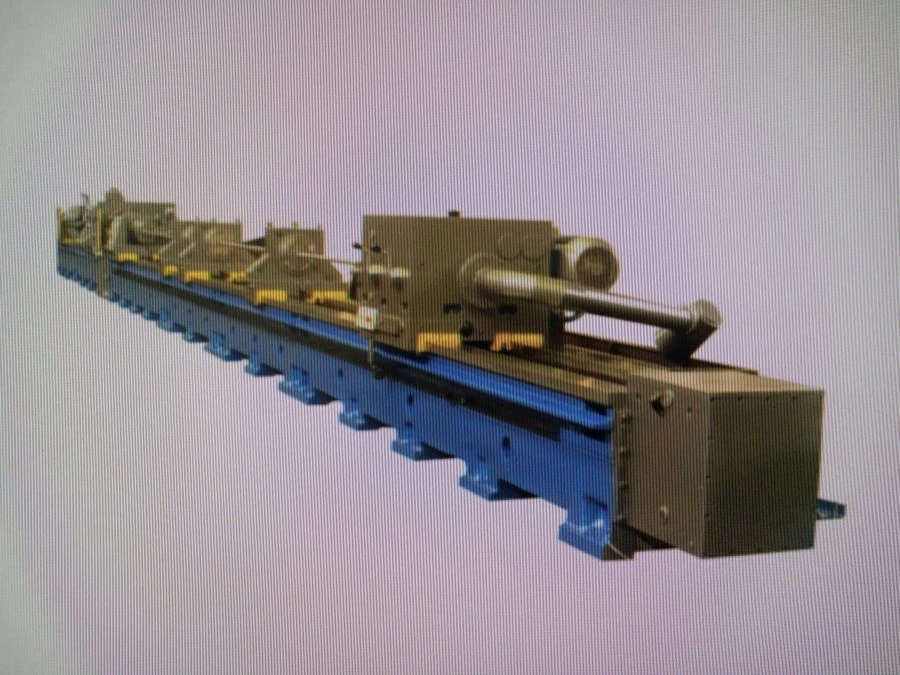

Deep Hole Processing Machine Model 2825P for Efficient Manufacturing

Manual Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Special machine for machining deep holes is designed for high-quality and high-performance machining of deep holes in workpieces such as bodies of rotation and in body parts. Independent rotation of the workpiece and the tool provides a wide range of cutting speeds. The machine has a wide, rigid bed with two rectangular hardened guides.

Specifications

The largest diameter of the workpiece mounted above the bed, not less than

630 mm

The largest diameter of the workpiece to be installed in chucks and lunettes, not less than

45...320 mm

Length of articles to be fitted

600...15000 mm

Limit dimensions of machined holes (solid drilling)

40...150 mm

Highest force on the travelling screw

5000 kg

Maximum weight of workpiece to be mounted with one lunette

3000 kg

Maximum weight of the workpiece to be mounted with two lunettes

4000 kg

Maximum weight of workpiece with three lunettes

5000 kg

Height of centers

315 mm

Width of the frame

630 mm
