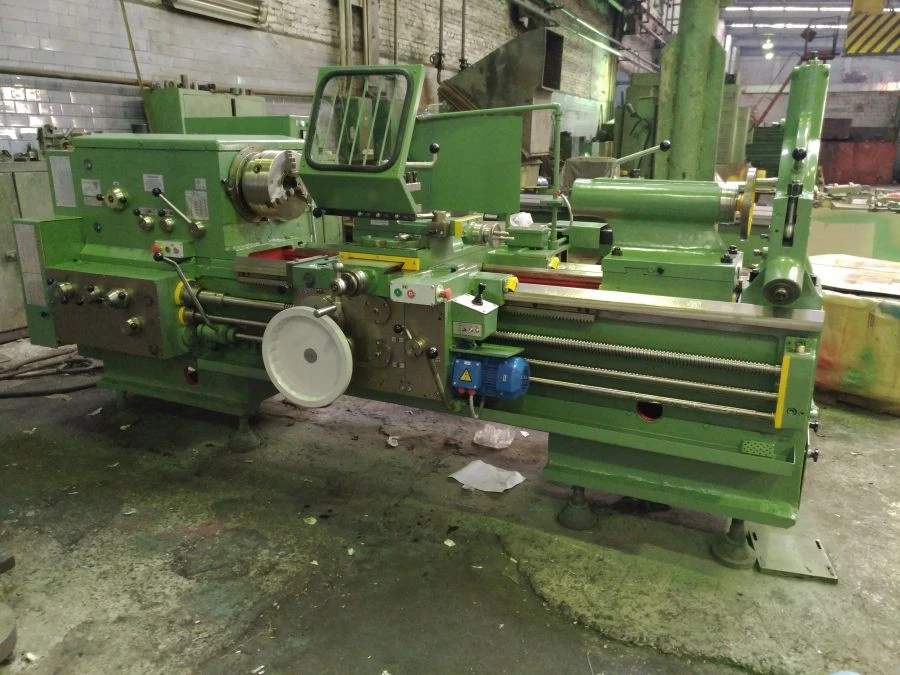

Precision Lathe Machine 1M63H for Metalworking

Available for Import

Precision Lathe Machine 1M63H for Efficient Metal Turning Applications

Manual Metal Lathes

Manufacturer:TPK RSZ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Model 1M63N lathe-turning and screw-cutting machine produced by "RYAZAN STAN" Ltd. "RYAZANSKY STANKOSTROITEL", Ryazan, Russia, is designed for turning parts with straight, stepped profiles, as well as for threading. High rigidity, hardened guides and gears guarantee long-lasting accuracy and allows to fully use the capabilities of high-speed and carbide tools when machining both ferrous and non-ferrous metals.

The direct coolant supply to the tool allows machining at high cutting conditions. The machine is equipped with a 4-position toolholder with vertical axis of rotation and manual change of tool positions. The accuracy class of the machine is H according to GOST 8-82.

Type of climatic execution UHL4 according to GOST 15150-69.

Specifications

Type of product according to PP RF 616

Screw-cutting lathes (universal)

The largest diameter of the workpiece: mounted above the bed:

700 mm

To be machined above the slide

350 mm

Longest workpiece length

750,1500,2000,3000,4000,5000,8000,10000 mm

Flanged spindle end according to DIN

11?

Number of spindle speed steps

Spindle speed limits, rpm

10-1250

Feed rates: longitudinal, mm/rev

0,033-5,6

Transverse, mm/rev

0,013-2,064

Cutter slides, mm/rev

0,010-1,76

Thread cutting steps: metric threads

1-224 mm

Inches, threads/inch

28-0,25

Modular, modular

0,25-56

Pitch, pitch dia

112-0,5

Transverse, m/min

Main motion drive power, kW

Weight, kg

4200 (RMZ 750), 4840 (RMZ 1500), 5100 (RMZ 2000), 5750 (RMZ 3000), 6900 (RMZ 4000), 9000 (RMZ 5000), 11800 (RMZ 8000), 13200 (RMZ 10000)

Overall dimensions, mm

3000x1780x1550 (??? 750), 3740x1780x1550 (??? 1500), 4230x1780x1550 (??? 2000), 5240x1780x1550 (??? 3000), 6240x1780x1550 (??? 4000), 7240x1780x1550 (??? 5000), 10300x1780x1550 (??? 8000), 12420x1780x1550 (??? 10000)

To be worked above the bed

630 mm

Spindle bore diameter

105 mm

Speed of rapid slide movements, longitudinal m/min

5,2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
