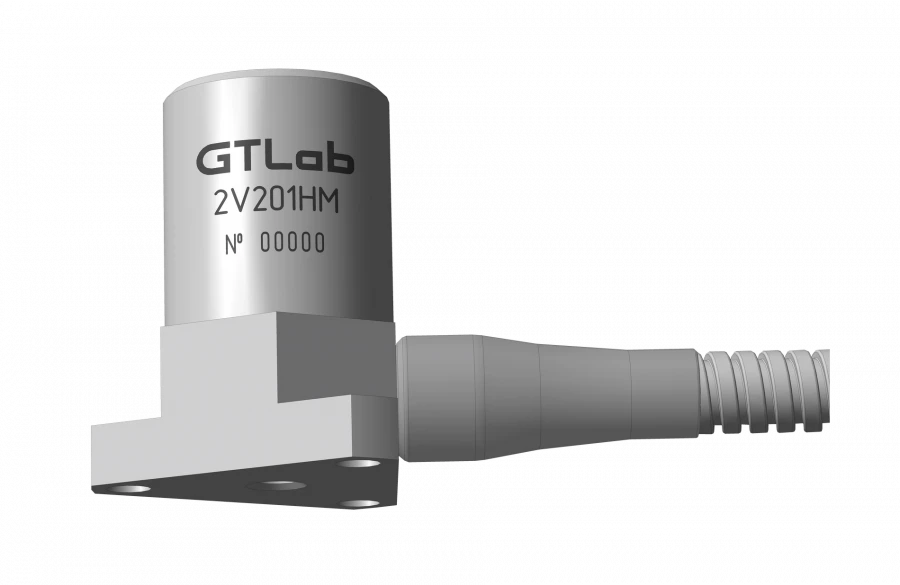

Vibration Speed Sensor 2V201HM for Measuring Industrial Equipment Vibration

Vibration Measurement Equipment

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Vibration velocity transducers with voltage output are electromechanical transducers with increased noise immunity. They are intended for measuring the vibration velocity signal of industrial equipment in conditions of strong industrial interference.

Specifications

Conversion factor at base frequency 80 Hz

2.5 ± 0.25 mV/mm/sec

Measured speed range

0,1 ... 1500 mm/sec.

Operating frequency range of measured vibration velocity

2 ... 3 000 Hz

Unevenness of the frequency response with respect to the value at the base frequency of 80 Hz: ? in the frequency range 2 ... 3,

± 1 dB | 5 %

Relative transverse conversion ratio

< 5 %

Operating temperature range

-50 ... +150°?

Coefficient of influence of ambient air temperature, within the limits of

± 0,1 %/°?

Level of RMS of natural noise reduced to the input

< 0.04 mm/sec

Maximum output voltage with nonlinear distortion factor not more than 5 %

± 5 ?

Output impedance

< 100 ohms

Power supply: ? voltage ? current

+ (20 ... 30) V ? < (7 ... 9) mA

Explosion protection

1Ex d IIC T6...T4 Gb, 0Ex ia IIC T6...T4 Ga

DC output voltage level

+ (7 ... 15) ?

Housing material

stainless steel

Weight (without cable)

120 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
