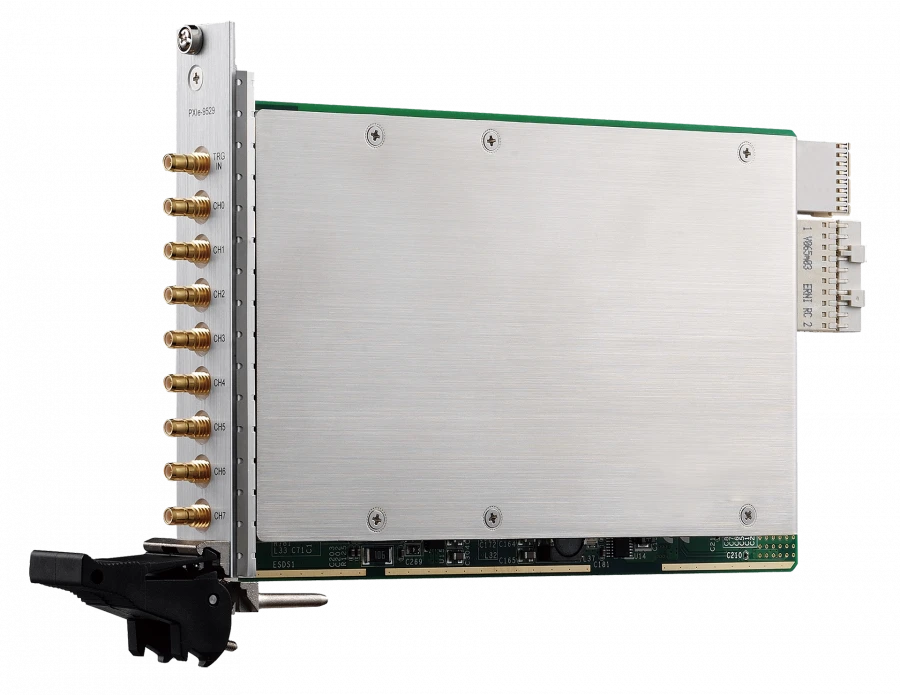

Data Acquisition Module D006 for Analog-Digital Signal Conversion

Vibration Measurement Equipment

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The data acquisition module is used for analogue-to-digital conversion of signals from sensors up to 50 kHz and for transmission of the converted signal to a PC (registration, recording and its digital post-processing). Connection via PXI Express bus. Virtual instruments of GTL software (supplied with the ADC): spectroanalyser (octave, third-octave, direct), mutual spectrum, envelope spectrum, oscilloscope, AFFC (amplitude-phase frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible filters of upper VLF and lower VLF frequencies (up to 50 orders), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Specifications

ADC sampling frequency

128 kHz

Type of input connectors

SMB

Interface

PXI Express

Operating temperature

0 ... +55 °?

Frequency range

50,000 Hz

Measured DC and AC voltage ranges

± 10,000 mV

Number of ADC bits

24 bits

Input impedance

200 kOhm

Number of analog inputs

Possibility to connect sensors according to IEPE standard (2 mA, 24 V)

Got it

GTL software features

? oscilloscope; ? spectroanalyser; ? amplitude and phase frequency response; ? modal analysis; ? AC voltmeter; ? DC voltmeter; ? signal recording and playback. ? Flexible digital filters VLF, FWF, band-pass, band-rejector filters

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
