Vibration Controller A633 - Measure Vibration Processes

Available for Import

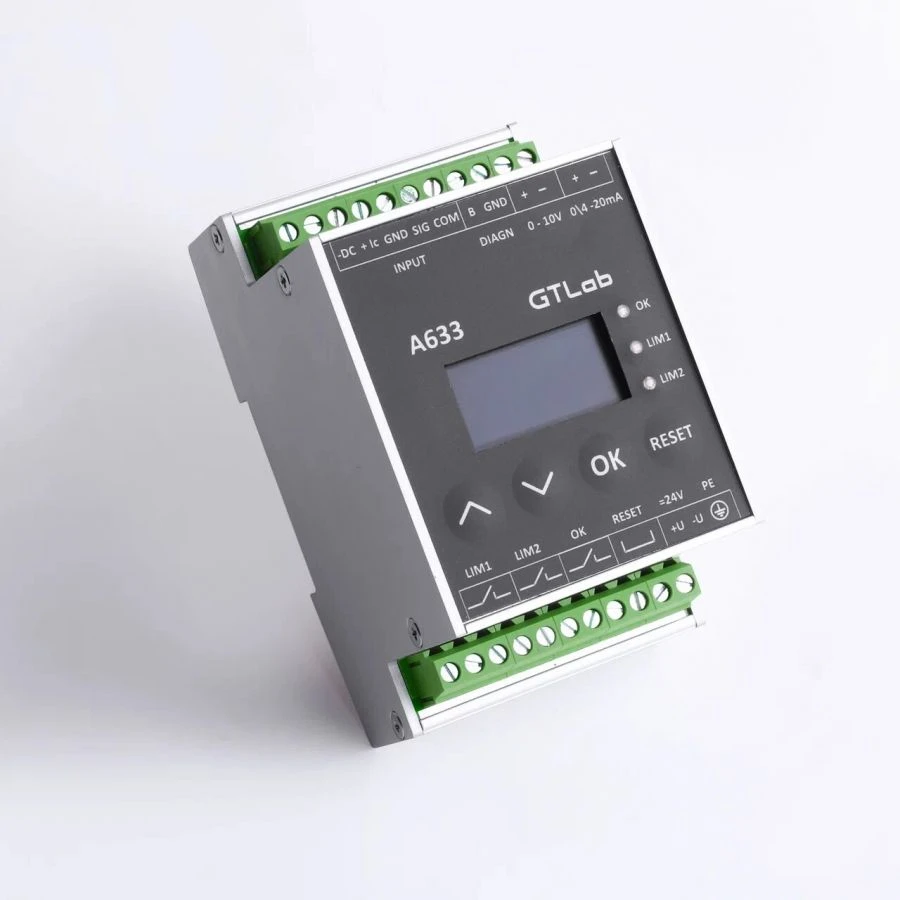

Vibration Controller A633 - Accurate Vibration Monitoring and Control

Vibration Measurement Equipment

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Vibration controllers are designed to measure vibration processes and transfer the obtained values to automatic control systems of technological equipment.

Specifications

Measured vibration velocity range, RMS

0 ... 10 mm/s

Operating frequency range of measured vibration velocity (AFC non-uniformity - 1 dB)

3 ... 1 000 Hz

Output

Voltage 0 ... 10 ?

Input/output connectors

screw terminals

Measurement error in the operating temperature range

±2 %

Types of connected vibration transducers

IEPE, with voltage output and negative supply

Sensor supply voltage

IEPE + 24 ± 2 V

IEPE sensor supply current (±10 %)

5.7 mA

Dry contacts

for monitoring of vibration velocity LIM1, LIM2

Parameters of built-in comparators

Values of adjustable thresholds of vibration velocity RMS 0,1 ... 100 mm/s. 100 mm/s

Conditions of signalling (closed or open) of "LIM1", "LIM2" relay contacts

Continuous exceeding of a preset threshold value by an informative signal within 0-100 s

Mode of operation of relay contacts

lockout/self-recovery

Self-recovery condition

6% reduction of vibration from the trigger threshold

Delay of vibration control after establishing operation mode/self-recovery

0 or 20

Dry contact parameters

switching current < 2 A

Information displayed on the built-in display

Vibration velocity RMS, sensor conversion coefficient, values of set thresholds, error codes in case of cable breakage and sensor failure, setting of time of exceeding threshold values, relay contacts state.

Consumption current

< 200 mA

DIN rail mounting

Armoured glass

Feature

Measurement of parameters by means of spectral analysis (FFT)

Step of setting the time of exceeding the vibration velocity threshold values

Supply voltage (±10 %)

18...36 V

Weight

200 year

Operating temperature range

-40...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
