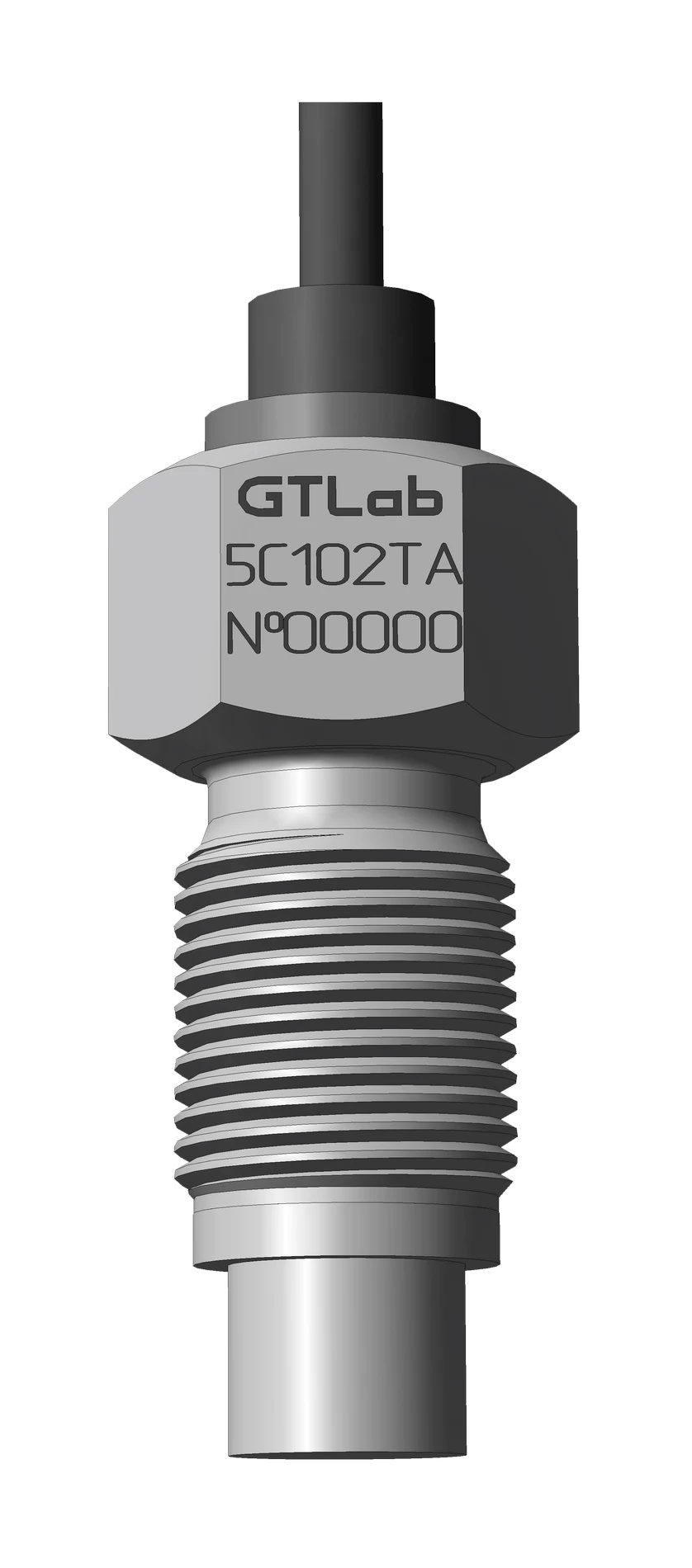

Dynamic Pressure Sensors 5C102TA-2500 -140 for Engine and Process Control
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Dynamic pressure sensors with charge output are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are designed to measure pressure in shock and detonation waves in gas and liquid media.
Specifications
Upper measurement limit
250 MPa
Conversion factor
1400 pCal/MPa
Limits of permissible basic error reduced to the upper limit of measurement
± 2,5 %
Natural frequency in fixed state
> 100 kHz
Acceleration sensitivity
< 0.00005 MPa/g 1g = 9.807 m-s-2 or 10 m-s-2 = 1.02 g
Operating temperature range
- 60 ... + 200 °?
Electrical capacity
250 ... 270 pF
Insulation resistance under normal conditions
> 10,000 megohms
Sensing element material
lithium niobate
Housing material
stainless steel
Membrane material
stainless steel
Degree of protection against external influences
IP68 hermetically sealed version (can be used at depths up to 50 m)
Weight (without cable and connector)
15 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
