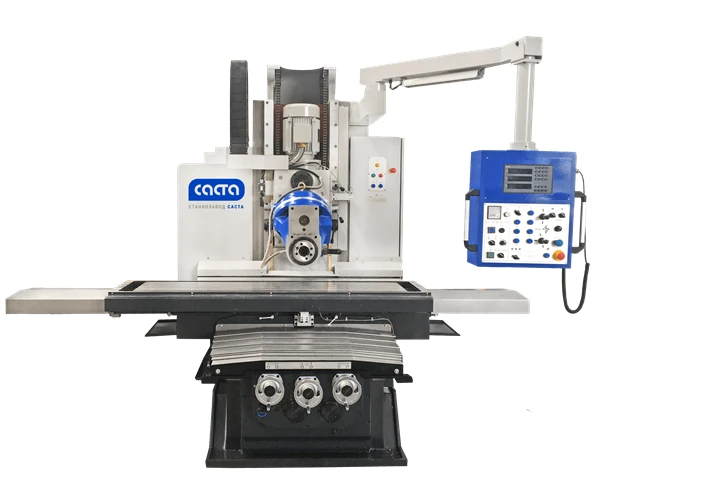

Universal Vertical Milling Machine 6820F1 for Precision Metalworking Tasks

Metal Milling Machines

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

-Vertical milling machine 6820F1 is a universal machine and is suitable for most tasks related to the processing of small-sized parts made of steel, cast iron, aluminium. -High rigidity of the machine, the presence of a rotary head and high torque expand the technological capabilities of the machine, allowing a more flexible approach to the fulfilment of tasks -Vertical milling machine with a rotary head is designed to perform all kinds of milling work on parts made of ferrous and non-ferrous metals in single, small batch, serial production. -Rigid one-piece cast housing parts of the machine: bed, column and table carriage are made of high quality cast iron and guarantee long-term serviceability and stability of geometric accuracy of the equipment. -The feed box allows to control three axes of the machine using only one motor. -The machine is equipped with a counterweight to reduce the load on the vertical feed ball screw.

Specifications

Type of product according to PP RF 616

Vertical milling machines

Length

4660 mm

Width

2600 mm

Height

2700 mm

Length of machined surface

1400 mm

Working width

600 mm

Weight

7000 kg

Maximum spindle speed

1800

Maximum torque

1814 Nm

Number of speeds

B1/B8 2100/900 MHz pcs

Main engine power

7.6 kW

Spindle cone

ISO50

Tool clamp

Hydraulic

Range of head rotation angle relative to the slide

+90 ... -90 deg.

Range of head half-shell rotation angle

0 ... +180 deg.

Diameter of screw for X, Y, Z axes

40 mm

Screw pitch for X, Y, Z axes

10 mm

Ball screw class for X, Y, Z axes

C3 mm

Z-axis travel (Vertical spindle movement)

650 mm

Working feed rate in X, Y axes (Transverse table movement)

2000 mm/min

Working feed rate in Z axis (Longitudinal table movement)

1000 mm/min

Accelerated feed rate in X, Y axis (Transverse table movement)

5000 mm/min

Accelerated feed rate in Z axis (Longitudinal table movement)

2500 mm/min

Table length

2000 mm

Table width

530 mm

Maximum permissible table load

2000 kg

T-slots (width x number x distance)

20x5x80 mm

Discreteness of axis mapping

0.01 mm

Minimum travelling distance of an axis

0.01 mm

Lubrication system pump power

42 W

Oil consumption

200 cm3/min

Tank capacity

3 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
