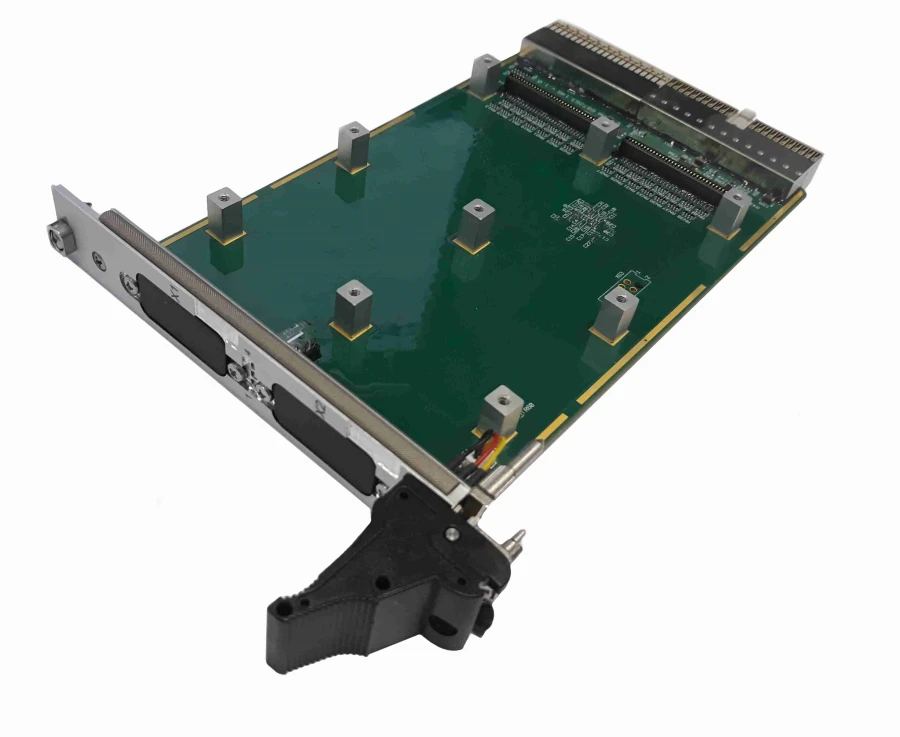

Universal DIC552 Input/Output Module for CompactPCI®

Available for Import

DIC552 Universal Input/Output Module for CompactPCI® - Enhance Your System's Connectivity

Data Processing Boards

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The DIC552 I/O module DIC552 IMES.467444.152 is a universal I/O module for operation on the CompactPCI® bus. The module is created by mezzanine technology and is a carrier with the possibility of installing mezzanines with a front output. Functionality of the module is determined by the installed mezzanines (for example: MIC1003-03, MIC1004-01, MIC1007-01, MIC1010-01, MIC1011-01, MIC1012-0X).

Modulb is designed for use in real-time control systems, production control, data acquisition, etc. DIC552 - mezzanine carrier is made in CompactPCI® standard and provides placement in 3U type constructions. The module allows up to two standard-sized mezzanine boards to be mounted on itself.

Specifications

Installation of up to two mezzanines with a face output

Armoured glass

Interface with CompactPCI 32-bit, 33 MHz system bus

Armoured glass

Interfaces available on the multiplexed bus for each mezzanine

4 SPI interfaces with a maximum word length of 32 bits and clock frequency up to 32 MHz; 4 UART interfaces (baud rate up to 1 Mbaud); 4 SPORT - serial interfaces with a maximum word length of 32 bits and clock frequency up to 32 MHz, as well as on the

Power supply voltage

+12 V, +3.3 V (according to CompactPCI standard)

Capacity excluding mezzanine consumption

not more than 6 W

Power consumption of mezzanines by +12 V

Total: 12 watts maximum; One mezzanine: 12 watts maximum

Power consumption of mezzanines at +3.3 V

Total: 15W max; One mezzanine: 4.5W max.

Operating temperature range

minus 40 to plus 85 °C

Weight

max. 0.2 kg
