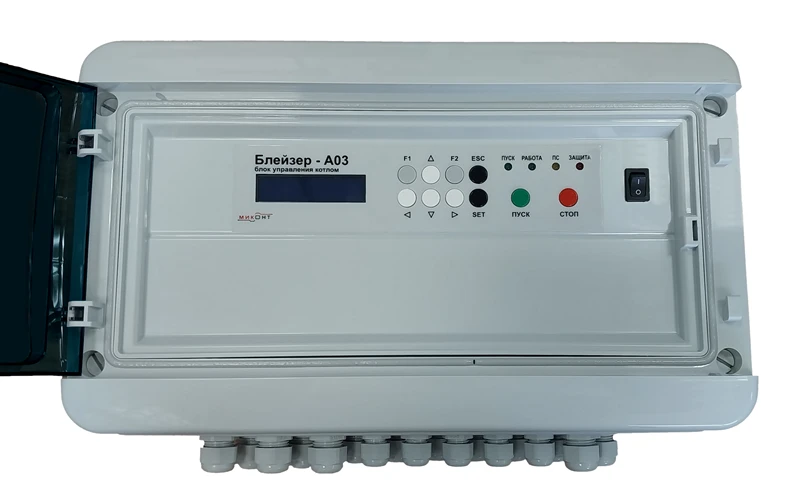

Universal Automation Controller Block BLAZER-A03 for Heating Boiler Management

Microprocessor Controllers

Manufacturer: MIKONT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Management of heating boilers with burners equipped with automatic burners.Management of non-automatic burners. Two-stage automated burners. Non-automated burners.

Automated burners modulating. Operation in cascade and winter/summer mode. For connection of burner control circuits: Maximum current of triac outputs (220 V) - 7.5 W (35 mA).

Maximum current of triac outputs (220 V) - 600 W (2 A).For connection of burner control circuits with operating current less than 40 mA: Minimum current of optocoupler with triac output (220 V) - 0,4 W (2 mA). Maximum current of the optocoupler with triac output (220 V) - 11 W (50 mA).Built-in keyboard and display for easy adjustment.Reliable protection against moisture and dust due to hermetically sealed housing complying with IP 65. Special software can be ordered.

Multifunctionality (versatility).

Specifications

Interfaces

RS232, RS485

Number of analog inputs

5 pcs

Number of analog outputs

1 pcs

Number of discrete outputs

B1/B8 2100/900 MHz pcs

Number of frequency / discrete inputs

2 pcs

Number of digital inputs

16 pcs

Max current of analogue output

0.03 A

Max current of analogue inputs

0.03 A

Power (not including burner control circuit supply voltage)

15 W

Max current of triac outputs (220 VAC)

2 A

Min current of triac outputs (220V)

0.035 A

Max current of relay outputs (240 VAC)

6 A

Power supply of burner control circuits

5 A

Operating temperature range

0...50 °C

Power supply voltage

185...240 V

Protection class

IP 65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
