Fuel Station Control System Controller INIT PRIME for Efficient Automation

Microprocessor Controllers

Manufacturer: INIT-PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

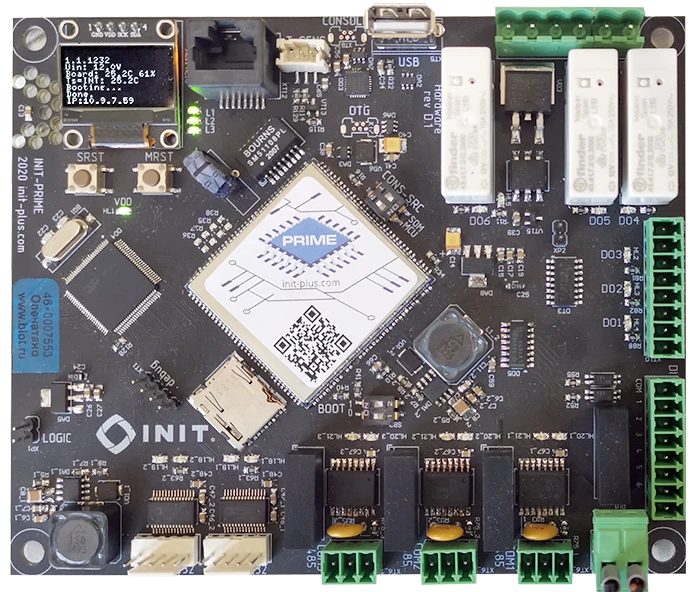

System control board for filling station equipment. The controller allows you to bring many disparate protocols of control of filling station equipment into a single unified form, convenient for automation and universalisation of business logic, as well as monitors the correctness of the aggregated equipment at the lower (hardware) levels. Controlled objects include: fuel dispensing equipment, information pedestals, automatic car washes, self-service terminals, electricity meters, level gauges, Modbus TCP, Modbus RTU (RS-485) devices. Advantages for the client when choosing ACS solutions with a controller: quick start-up of the filling station; possibility of equipment replacement at the filling station without loss of control over automation; control and monitoring of equipment; configuration of various equipment without additional controllers.

Specifications

Processor core

ARM Cortex-A7

Processor frequency

528

Type of embedded storage medium

eMMC

Internal storage size

RAM

DDR3

RAM size

512

Control protocol

REST/JSON

Display

OLED, 128x64

Display diagonal

24.4 mm

External connectors

RS-485, RS-232, Ethernet (RJ-45), MOSFEET (3 A), dry contact inputs

Number of isolated RS-485 ports

3 pcs

Number of RS-232 ports

2 pcs

Number of built-in temperature sensors

1 pcs

Number of external temperature sensors

5 pcs

Number of Ethernet ports (RJ-45)

1 pcs

Number of dry contact inputs

6 pcs

Number of isolated MOSFEET inputs (3 A)

3 pcs

Number of electromechanical relays (10 A)

3 pcs

Number of relays for switching reactive loads (10 A)

1 pcs

Expansion board

64 inputs, 6 outputs

Overall dimensions of the board

145x120x35 mm

Board weight

0.2 kg

Minimum operating temperature

-30 °C

Maximum operating temperature

SBVVBG °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
