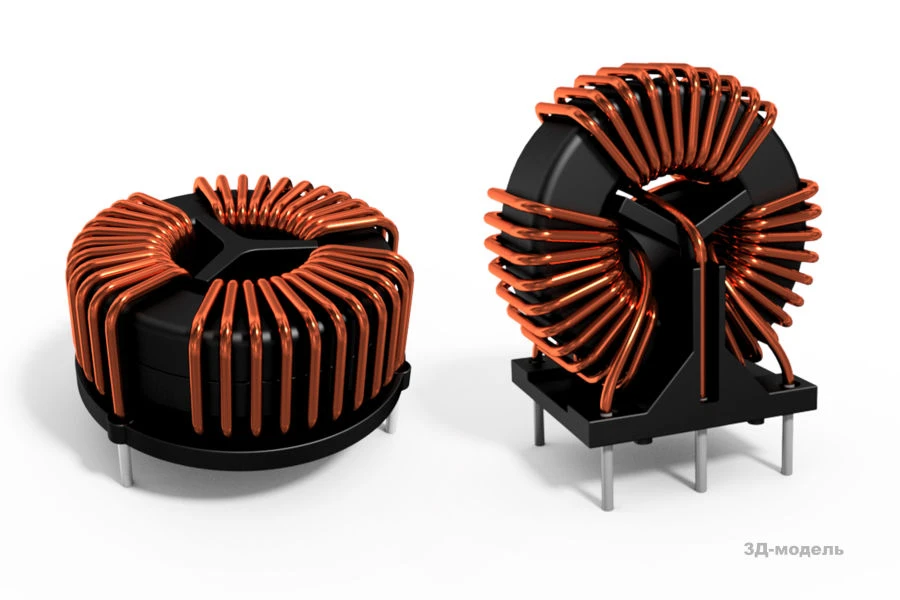

Three-Winding Single-Phase Chokes DC3 Series for Radio Interference Suppression

Inductive Coils & Chokes

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The chokes of in-phase filtering of radio interference DS are used for suppression of radio interference in electrical, radiotechnical and electronic products, equipment and apparatus for industrial and technical purposes with operating voltage up to 400 V 50 Hz AC, as well as in the input and output DC circuits of power supply sources from 12 to 400 V.

Specifications

DC resistance of windings

Not more - from 1,6 to 31,7 mOhm

Scattering inductance

Not more, 100 kHz - 1.1 to 18 mGN

Insulation resistance between windings (100 V)

MOM - 6000

Electrical strength of insulation between windings

AC test voltage, V - 2500

Impedance

+40/-25%, 100 kHz - 0.49 to 8.73 kOhm

Nominal inductance

+40/-25%, 100 kHz - 0.45 to 9.0 mGN

Nominal inductance value

+40/-25%, 10 kHz - 1,5 to 26 mGN

Maximum current, A

4 to 40 Rated inductance, +40/-25%, 10 kHz
