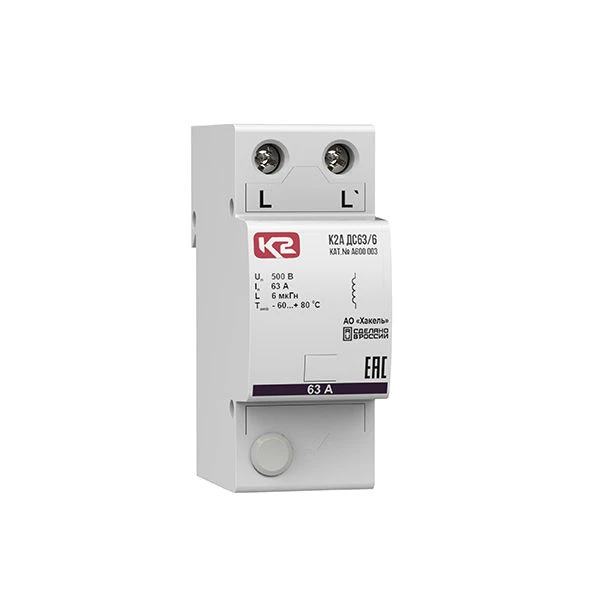

Pulse Separating Choke K2A DC63/6, Cat. No. A600 003

Available for Import

Pulse Separating Choke K2A DC63/6 for Coordination of Surge Protective Devices

Inductive Coils & Chokes

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The K2A DS63/6 pulse isolating choke is designed to coordinate the operation of Class I and Class II ultrasonic devices (or Class II and Class III ultrasonic devices) based on varistors when the distance between them on the power supply cable is less than 10 metres.

Specifications

Mounting

DIN rail 35 mm

Operating temperature

-60...80 °C

Rated mains voltage

500 V

Overall dimensions (HxWxH), mm

92x36x66

Inductance

6 µHn

Weight

365 year

Rated current

63 A

Current type

DC/variable, 50 Hz
