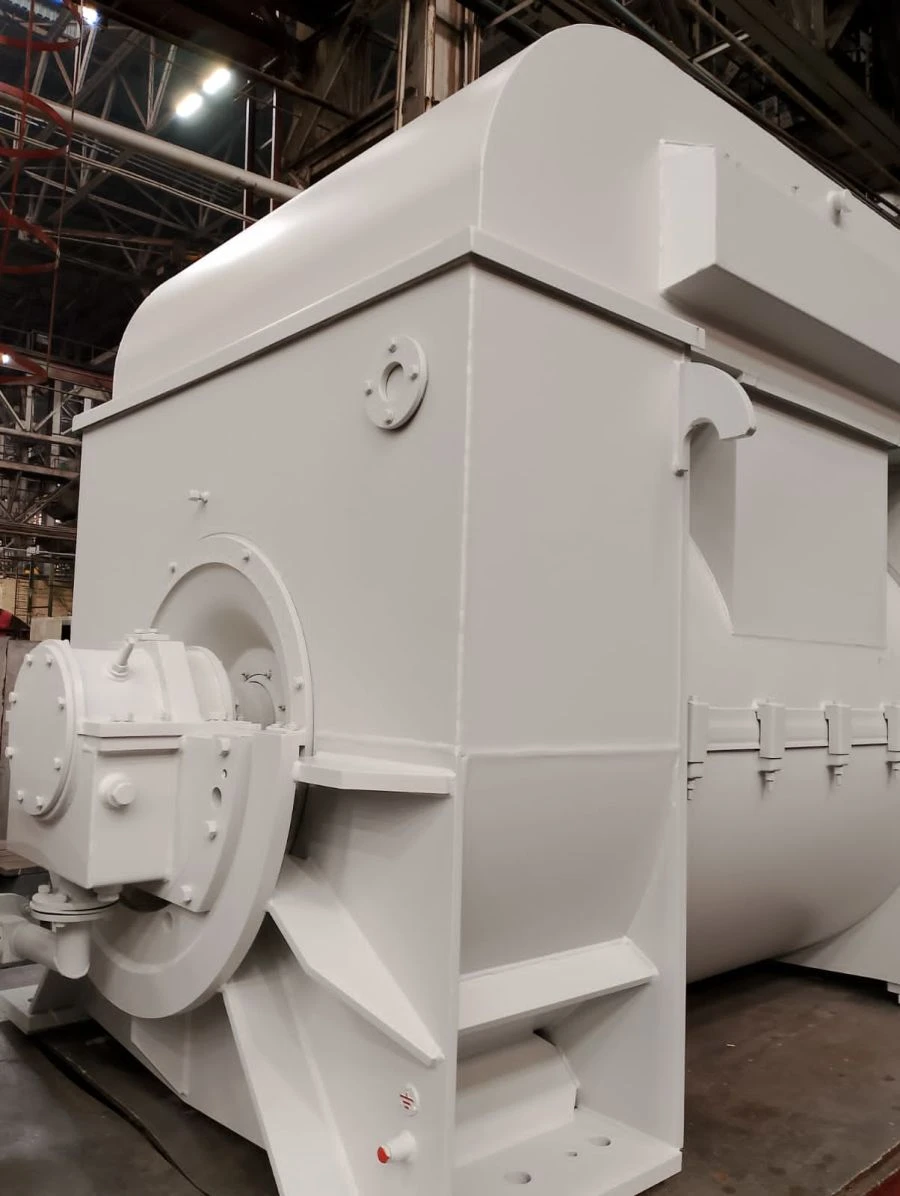

Three-Phase Induction Motor 4AZMP-4000/6000 for High-Speed Mechanisms

The asynchronous three-phase squirrel-cage induction motor 4AZMP-4000/6000 is designed for driving high-speed mechanisms of auxiliary needs of thermal power plants, stationary pumps, compressors, blowers in hazardous areas of premises of 1 and 2 classes (except outdoor installations) according to GOST R IEC 60079-20-1, GOST IEC 60079-10-1, GOST IEC 60079-14 with observance of special conditions of application. Motors have explosion-proof explosion protection level with the type of explosion protection "shell under overpressure "p" and explosion protection marking -1Ex px II T5 Gb X according to GOST 31610.0, GOST IEC 60079-2. Structural design IM1001 GOST2479-79.

Cooling method IC7A1W7 GOST R IEC 60034-6-2012. The motor has shielded sliding bearings with forced lubrication system. Motor shells have flanges for connection of supply and exhaust ducts for supply and discharge of protective gas.

The stator winding insulation is made on thermosetting binders.
