Available for Import

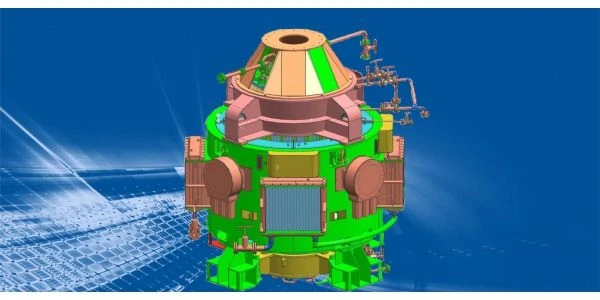

Vertical asynchronous motor 5AB-335124-26UHL4
Manufacturer:
Ural Gear Motors OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Asynchronous motor is designed to convert electrical energy of three-phase current into mechanical energy of electric motor shaft rotation.
The motor is vertical, suspended design with two guide plain bearings and segmental sliding thrust bearing designed to take the load from the weight of the motor rotor. The end of the motor shaft is flanged.
The motor is vertical, suspended design with two guide plain bearings and segmental sliding thrust bearing designed to take the load from the weight of the motor rotor. The end of the motor shaft is flanged.
Specifications
Rotational speed
230.8
Rated power, kW
9500 kW
Rated line voltage
10 kV
Rated frequency of electric current
SBVVBG
Rated stator current
730 A
Rated torque, kNm
397
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
