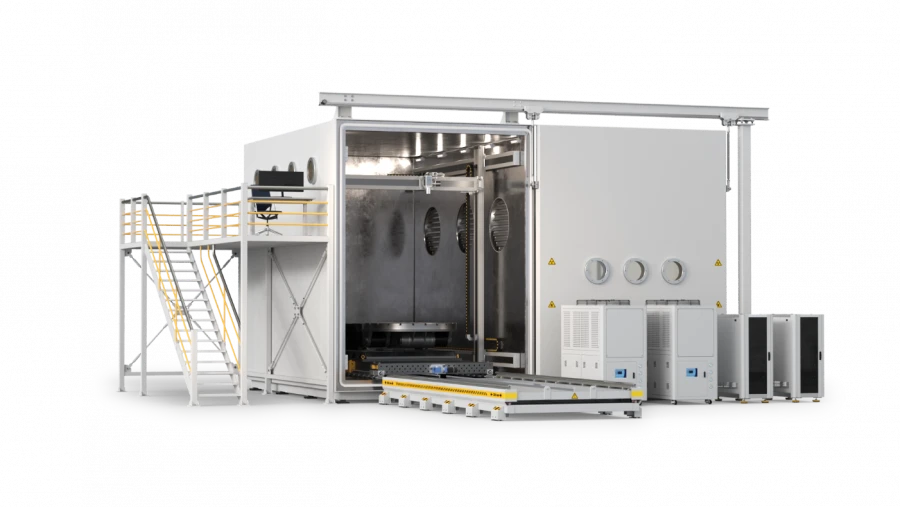

TETA 30E4000 Electron Beam Welding Machine for High Precision Applications
Manufacturer:
TETA LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The TETA 30E4000.
- General view video surveillance system
- Camera dust protection
- LED lighting of the vacuum chamber with dust protection
- Welding area lighting
- Laser aiming
- Cooling shields
- Cooled manipulator
- Pyrometric monitoring of the temperature in the weld pool
- Thermal imaging camera
- Feeding of filler powder or wire
- Cryogenic pump for water vapour extraction
- Window protection against dust
- Rear clamping with force stabilisation
- Melting sensor
- Automatic pointing
- Automatic focusing
- Freely programmable beam deflection trajectory
- Documentation of welding parameters, printing of reports
- Remote maintenance via Internet
- General view video surveillance system
- Camera dust protection
- LED lighting of the vacuum chamber with dust protection
- Welding area lighting
- Laser aiming
- Cooling shields
- Cooled manipulator
- Pyrometric monitoring of the temperature in the weld pool
- Thermal imaging camera
- Feeding of filler powder or wire
- Cryogenic pump for water vapour extraction
- Window protection against dust
- Rear clamping with force stabilisation
- Melting sensor
- Automatic pointing
- Automatic focusing
- Freely programmable beam deflection trajectory
- Documentation of welding parameters, printing of reports
- Remote maintenance via Internet
Specifications
Type of product according to PP RF 616
High-vacuum electron-beam installations
Power
30 kW
Internal dimensions of the vacuum chamber
5000×3500×4900 mm
Accelerating voltage
60 kV
Maximum beam current
500 mA
Beam current stability
0.1 mA
Beam deflection angle
±7°
Cathode type
Indirect heating
Pumping time to operating vacuum
30
Manipulator, number of axles
5 pcs
Movement in X, Y, Z axes
4000, 2500, 3000 mm
Travel speed in X, Y, Z axes
0.1 - 50 mm/sec
Gun tilt angle
±90°
Faceplate diameter
900 mm
Rotation speed
0,1 - 5 rpm
Power supply voltage
3 phases, 380 V, 50(60) Hz
Dimensions
14000x12000 mm
Mark
ТЕТА 30Е4000
Type
Electron beam welding unit
Equipment
Options available
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
