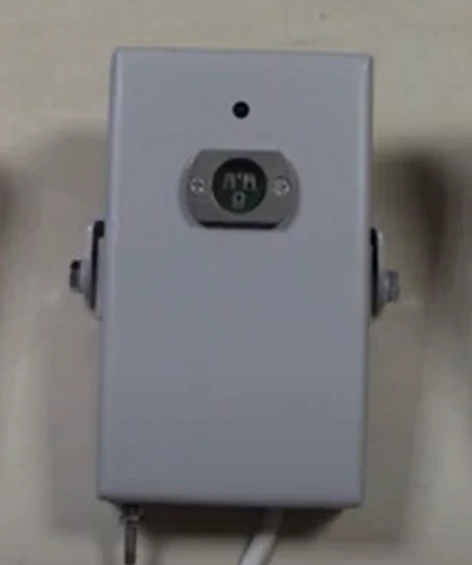

Spectron-804-M Infrared Flame Detector Available for Import

Spectron-804-M Infrared Flame Detector for Enhanced Safety

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Spectron-804-Exi-M-HART fire flame detector Spectron-804-M-Modbus fire flame detector Spectron-804-Exm-M-HART fire flame detector Spectron-804-M-HART fire flame detector

Description

Spectron-804-M is a fire detector flame infrared (4IC) range. They are used in open areas and in enclosed spaces with heavy optical interference. Viewing angle of 90°.

Range - 25 m at TP5 and TP6. 4 modes of operation with different sensitivity and detection range. There are functions of self-test and fault signal transmission.

Upit - 9...26V. IP66/IP68. Made of galvanised mild steel with anti-corrosion zinc coating and powder painted.

An "FIRE" signal is generated only when the 4-IR sensors detect the presence of flame simultaneously.

Specifications

Weight
800 year
Overall dimensions
135x109x104 mm
Viewing angle
Flat grinder, Specialised grinder
Recovery time
5
Spectral sensitivity
4-IC.
Resistance to 1 post of electric arc or argon welding
4 m
Connection
4-wire
Sensitivity according to GOST R 53325
Grade 1
Operating temperature range
85 °C
Housing material
Galvanized steel
Power supply voltage
9...26 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
