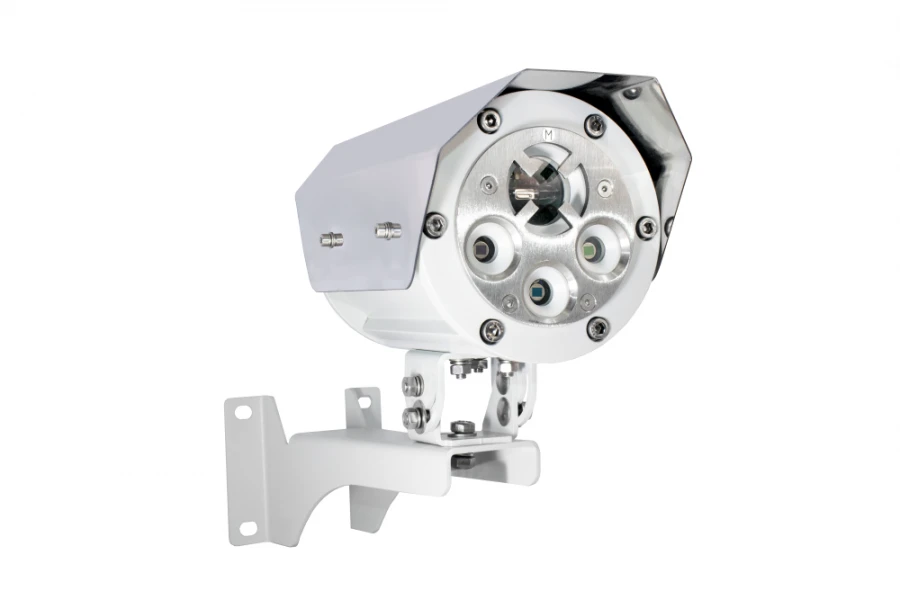

Flame Detector Spectron-804-Exd-A-B-IP-HART

Available for Import

Spectron-804-Exd-A-B-IP-HART Flame Detector for Industrial Safety

Fire Alarm Detectors

Manufacturer:SPEKTRON LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Spectron-801-Exd-A fire flame detector Spectron-901-Exd-A-HART fire flame detector Spectron-801-Exd-A-HART fire flame detector

Description

Super immune to heavy optical interference. They are applied on open areas and in closed premises. They have the following functions: self-testing, dust function, heated optics, transmission of the signal failure, adjustment with 4 modes of range and 4 modes of sensitivity, galvanic isolation between the detector power supply and heating power supply, multi-cascade lightning protection, the function of changing settings with the help of a tuning light.

Detection range of TP-5 60 metres, TP-6 50 metres, corresponds to class 1. Viewing angle of 90 °. Inertia 5, 10, 15, 25 s (user selectable).

Upit - 9..32V. Idezh - 10mA, Ipozh - 30mA with heating up to 290mA. Temperature range: -55°C to 135°C, with heating from -70°C to + 135°C.

IP66/IP68. 4-wire connection. Overall dimensions (HxWxH) 245x290x315.

Magnet to check the performance of the kit. "Spektron-804-Exd-A-V-IP-HART" with video module is a multi-band fire flame detector.

Specifications

Sensitivity levels

T5/T6

Power supply voltage

18...26 V

Housing material

Aluminum alloy

Explosion protection marking

1Ex db IIC T6...T4 Gb X / Ex tb IIIC T85ºC...T135ºC Db X

Operating temperature range

Flat grinder, Specialised grinder °C

Assignment

Recommended for fire alarm systems and fire extinguishing systems

Designation

IR/UV MULTI-BAND FLAME DETECTOR IP329/330

Operating temperature

(55);+90 °C

Degree of protection of the shell, IP

Weight

6 kg

Overall dimensions

245x315x290

Video module resolution

2MP (1920x1080)

Video module local storage

USB-HDD up to 128GB

Video module power supply voltage

B1/B8 2100/900 MHz V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
