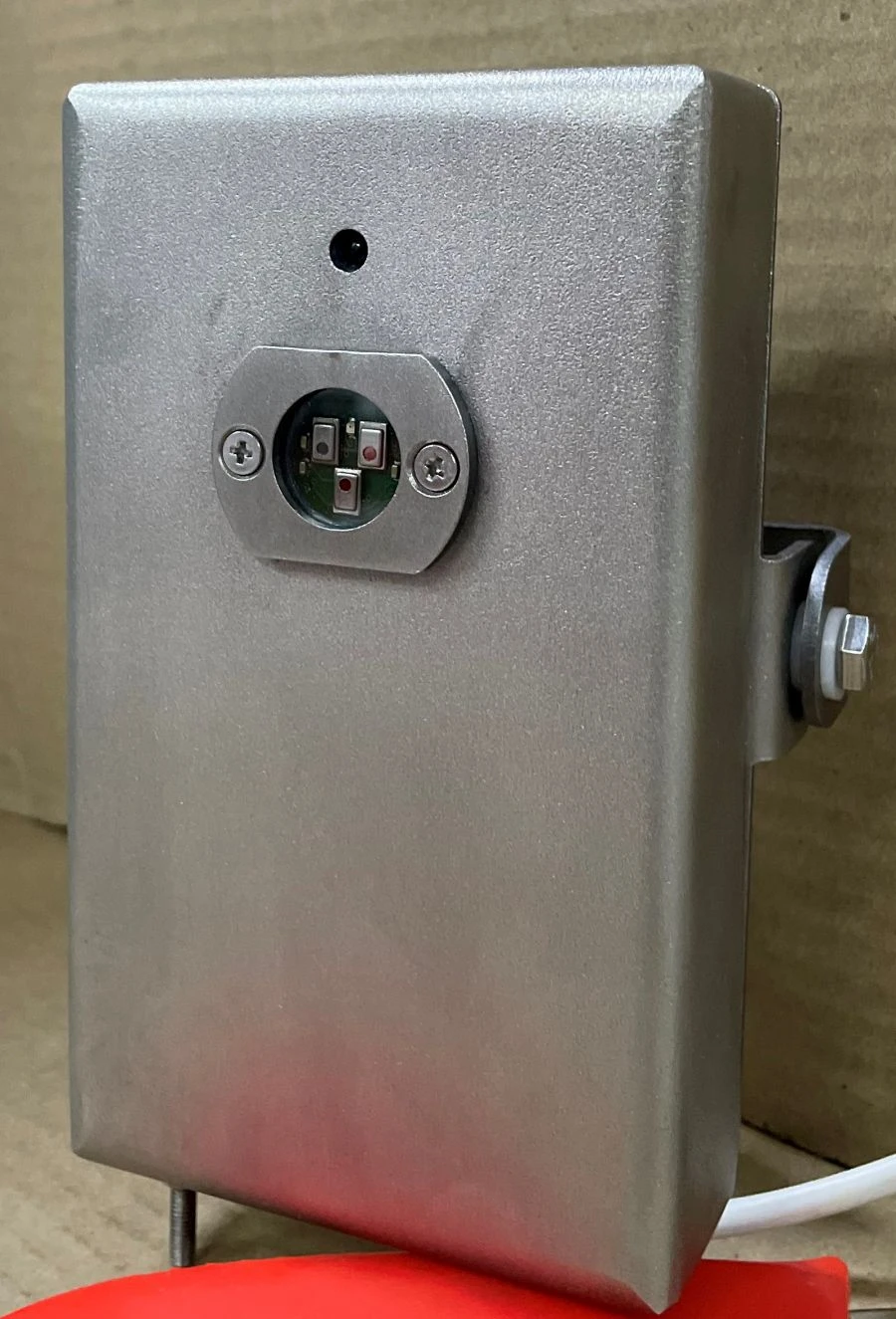

Spectron-801-Exi-N Flame Detector for Enhanced Fire Safety and Protection

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

3-IR detector fire flame Spectron series 801-Exi. Immunity category - 1 (Maximum) super interference immunity to heavy optical interference. Recognise manual arc and argon welding as false interference!

They are used in open areas and in closed rooms with heavy optical interference. Temperature range from - 55 to + 75°C. Viewing angle 90°.

Flame detection range - 25 m at TP5 and TP6. 4 modes of operation with different range and time of flame detection. There is a function of transmitting a fault signal, tested with a test light, but only with a 4-wire connection.

IP66/IP68. Explosion protection marking RO Ex ia I Ma X/0Ex ia IIC T6 Ga X/Ex ia IIIC T85ºC Da X. Housing - stainless steel.

Overall dimensions (HxWxG) 135x109x104 mm.

Specifications

Weight

800 year

Overall dimensions

135x109x104 m

Viewing angle

Flat grinder, Specialised grinder

Recovery time

Degree of protection of the shell, IP

Operating temperature range

75 °C

Operating temperature

(55);+75 °C

Designation

FIRE FLAME DETECTOR IP330-2-1

Assignment

Recommended for fire alarm systems and fire extinguishing systems

Explosion protection marking

RO Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85ºC Da X

Housing material

stainless steel

Power supply voltage

9...26 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
