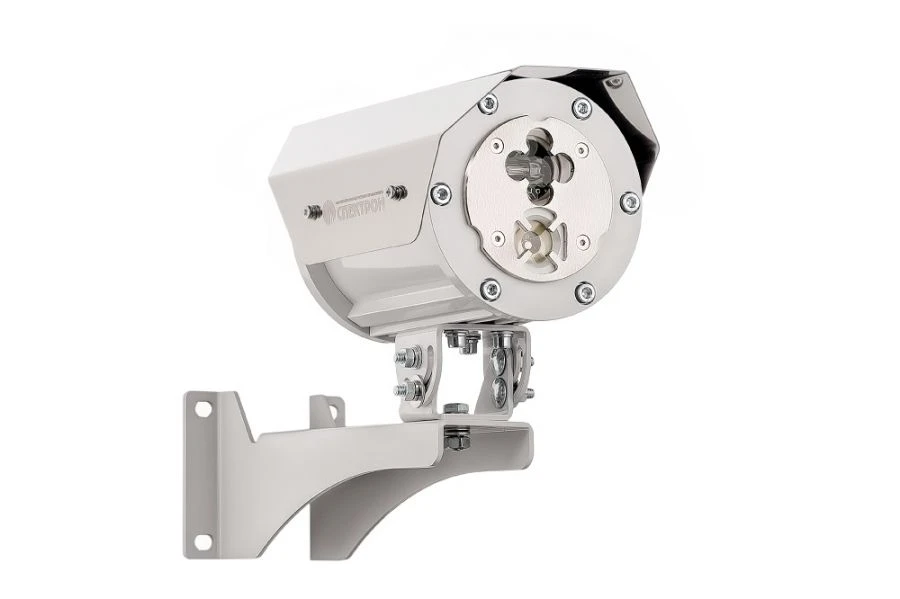

Spectron-601-Exd-A Flame Detection System for Enhanced Fire Safety

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Spectron-601-Exd-A-HART fire flame detector Spectron-501-Exd-A fire flame detector

Description

Sensor in the case of aluminium alloy. Spectron-601-Exd-A is a fire detector flame detector with a self-monitoring function, operating in the infrared and ultraviolet ranges. The detector is equipped with a self-test function with transmission of the "Fault" signal to the control panel.

Meets the requirements for explosion-protected equipment of subgroups II A, IIB, IIC according to TR TS 012/2011, GOST 31610.0-2019 (IEC 60079-0:2017), GOST IES 60079-1-2013) Designed for operation in hazardous areas of classes "1" and "2" of closed objects and outdoor installations. Additional mine explosion protection marking allows the detector to be used in underground workings of mines, mines and their above-ground structures. The detector operates only on a 4-wire connection scheme.

Range up to 25 metres.

Specifications

Weight

2.8 kg

Overall dimensions

128x231x279 mm

Connection

4-wire

Recovery time

Type of climatic version according to GOST 15150

UHL1, OM1

Viewing angle

Flat grinder, Specialised grinder

Resistance to three electric arc or argon welding stations

4 m

Protection against impulse overvoltages (surge protection) according to GOST R 51992-2002

III

Degree of protection of the shell, IP

Operating temperature range

Flat grinder, Specialised grinder °C

Operating temperature

(55);+90 °C

Designation

SPECTRON 600 Series 600 Multidirectional IR/UV IP329/330 Flame Detector

Assignment

Designed for fire extinguishing systems and fire alarm systems at oil and gas facilities and their infrastructure

Explosion protection marking

1Ex db IIC T6...T4 Gb / Ex tb IIIC T85ºC...T135ºC Db

Housing material

Aluminum alloy

Power supply voltage

9...32 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
