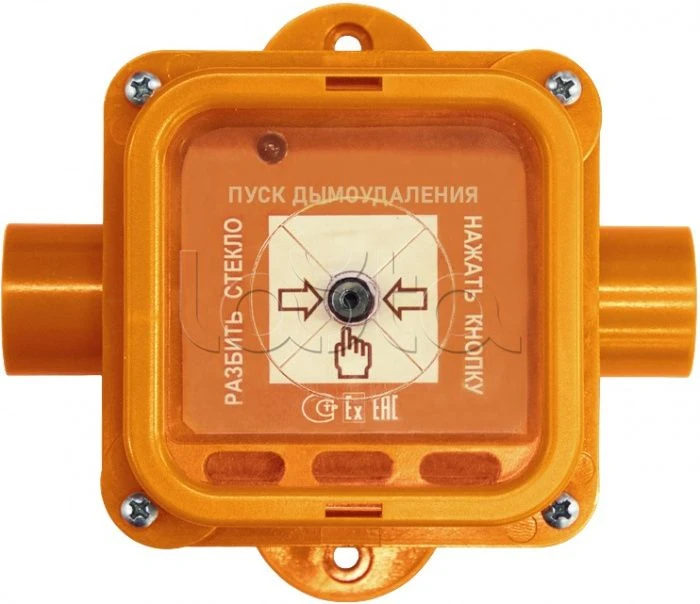

Explosion-Proof Remote Start Device Spectron-535-Exi-UDP-02 Version 01 Available for Import

Explosion-Proof Remote Start Device Spectron-535-Exi-UDP-02 for Smoke Removal Systems

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

????????-535-Exm-???-02 ???.01

Description

Explosion-proof remote start device. It is intended for manual switching on of the smoke exhaust system. Explosion protection marking RO Ex ia I Ma X/0Ex ia IIC T6 Ga X/Ex ia IIIC T85ºC Da X.

In case of installation in mines and mines the power supply is not higher than 12V. (section general information, distinctive-individual characteristics are listed below) Supply voltage: 9 to 28V. Temperature range from - 60 to + 70°C.

Housing - polyamide.

Specifications

Supported in-line connection methods
4-wire
Power supply voltage
9...28 V
Resistance of the detector in triggering mode
6,2
Technical availability time
60
Weight
1300 year
Temperature range,
70 °C
Degree of protection by sheathing
66/68
Type of explosion protection
Intrinsically safe electrical circuit
Explosion protection marking
RO Ex ia I Ma X/0Ex ia IIC T6 Ga X/Ex ia IIIC T85ºC Da X
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
