Spectron-512-Exd-A-UDP-03 Modbus Remote Start Device Available for Import

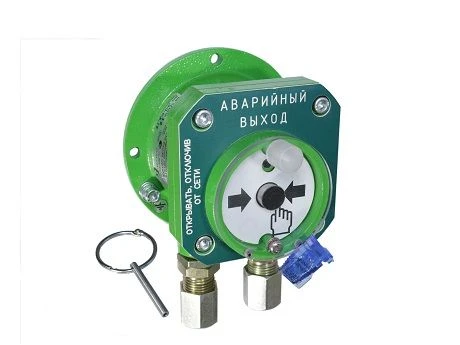

Spectron-512-Exd-A-UDP-03 Remote Start Device for Evacuation Systems

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Spektron-512-Exd-N-UDP-03 remote start device Spektron-512-Exd-A-UDP-03 remote start device Spektron-512-Exd-N-UDP-03-HART remote start device Spektron-512-Exd-A-UDP-03-HART remote start device Spectron-512-Exd-N-UDP-03-Modbus remote starter

Description

Designed for manual activation of "EVACUATION" systems. Has the function of self-testing and transmission of the signal fault. 2 and 4-wire connection.

Temperature range from -65°C to +85°C. IP66/IP68. Upit - 9...28 V.

Overall dimensions 123x106x122. Housing - aluminium alloy. Explosion protection marking.

1Ex db IIC T6 Gb/Ex tb IIIC T85ºC Db Digital interface via Modbus/RTU protocol. The control centre transmits the "Start" signal to the control panel when the drive element is pressed. When the drive element returns to the initial position, the control centre stops the start signal.

Specifications

Weight
1.2 kg
Overall dimensions
123x106x122 mm
Degree of protection of the shell, IP
68
Operating temperature range
85 °C
Operating temperature
(65);+85 °C
Designation
Explosion-proof remote starter
Assignment
Designed for manual activation of "EVACUATION" systems
Explosion protection marking
1Ex db IIC T6 Gb/Ex tb IIIC T85ºC Db
Housing material
Aluminum alloy
Power supply voltage
9...28 V
