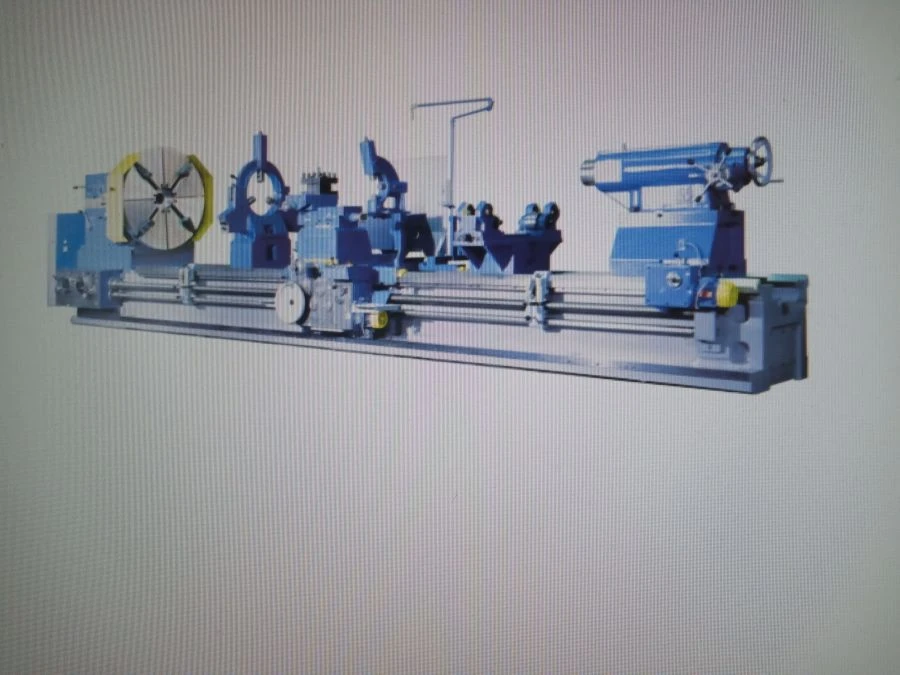

RT317 Precision Lathe and Thread Cutting Machine for Multi-Function Applications

Manual Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The lathe is designed for external turning, boring, drilling, taper machining, thread cutting: metric, modular, inch, pitched, multi-threading. Technical characteristics and rigidity of the machine allow to fully use the capabilities of high-speed and carbide tools in the processing of both ferrous and non-ferrous metals. For machining of conical surfaces and tapered threads the machine can be equipped with a cone ruler by special order. Machine design does not provide for the possibility of equipping with electronic control devices (CNC) on the contour on 2 or more axes.

Specifications

Limiting dimensions of the workpiece to be machined in the chuck, max.

1250 mm

The largest diameter of the workpiece to be machined above the slide, not less than

1300 mm

The largest diameter of the workpiece mounted above the bed, not less than

1700 mm

Total power of electric motors installed on the machine tool

7 kW

Maximum mass of the workpiece to be installed

10000 kg

Maximum length of the workpiece to be processed, not less than

3000 mm

Machine dimensions

2395x2250x6215

Machine weight

17900

Type of equipment

Turning and screw-cutting machines (universal, with CNC, CNC)

Height of the tool to be mounted

SBVVBG mm
