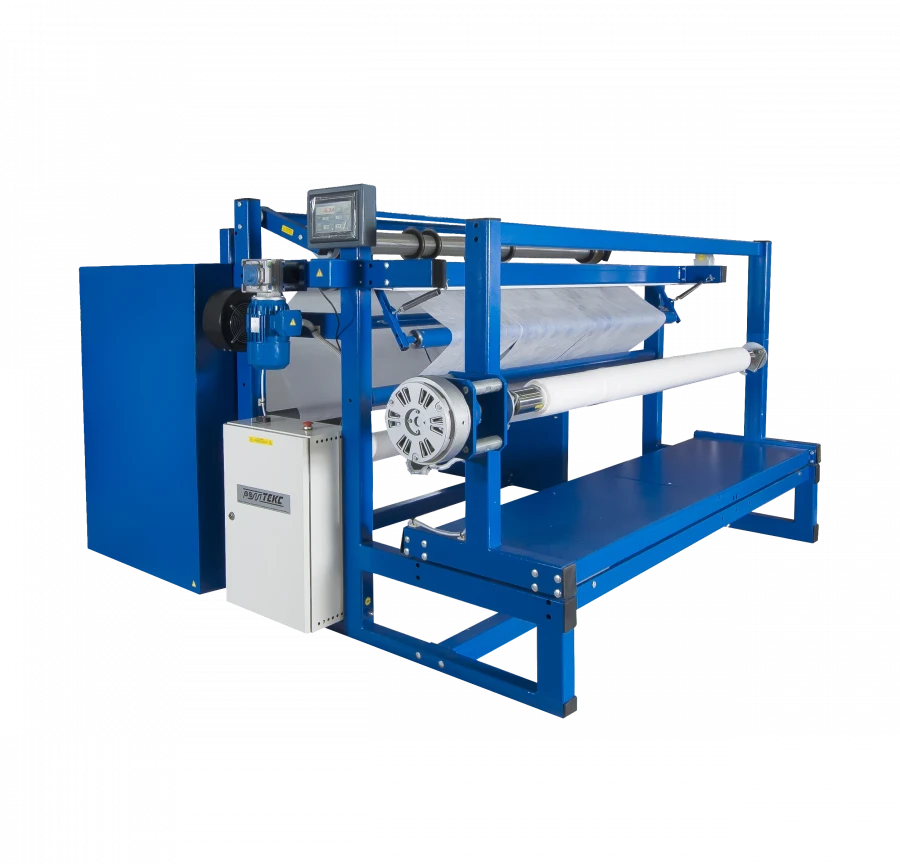

Rolltex B03.1 Longitudinal Cutting Machine for Precise Material Cutting

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The machine for longitudinal cutting of bales model B03.1 is designed for rewinding from bale to bale, longitudinal cutting of material into strips with width from 100 mm and length measurement. The bale slitting machine provides rewinding of material rolls up to 8 mm thick. The maximum diameter of the bale at the inlet is up to 600 mm, the mass of the bale at the inlet is up to 150 kg.

Maximum output bale diameter up to 600 mm, output bale weight up to 150 kg. Available in bale widths up to 1600 mm and 2100 mm. The standard equipment includes 5 sets of cutting knives.

Specifications

Mark

Rolltex

Machine control

Machine control from the operator panel

Operator panel

sensory

Emergency buttons

located in the unwinding area and in the winding area in places accessible to the operator.

Automatic material tension monitoring system

material tension during rewinding is regulated by means of electromagnetic brake and sensor readings. at the beginning of rewinding, the operator pre-selects the measurement factor and the material tension force during rewinding.

Unwind bale edge alignment function

necessary for aligning the material in width before feeding the material into the cutting zone. edge alignment is performed by the carriage with left-right movement according to the sensor readings. the left-right movement of the carriage is ±10 cm, thus t

Electronic programmable metre meter

-Measurement error is ±0.1% per roll length for non-elastic and non-pile materials; -Use of conversion factors allows measurement of materials of different densities; -Non-independent power supply of the meter ensures the storage of

Total mass of coils to be wound

150 kg

Ruler for setting the knives to the required width

as standard. the ruler is located in the cutting unit area.

Disc knives (knife, counterknife)

Comes with 5 sets of knives (knife + counter knife)

Pneumatic expander shafts

Included: 1 unwinder for 76mm bobbin and 2 winders for 76mm bobbin.

Maximum diameter of winding rolls

600 mm

Minimum width of the strip to be cut

100 mm

Unwind bale weight

150 kg

Roll width

1600 mm

Diameter of uncoiled bale

600 mm

Type of materials to be rewound

inelastic, woven and nonwoven. material thickness not more than 8 mm. material density not less than 25 g/m2.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
