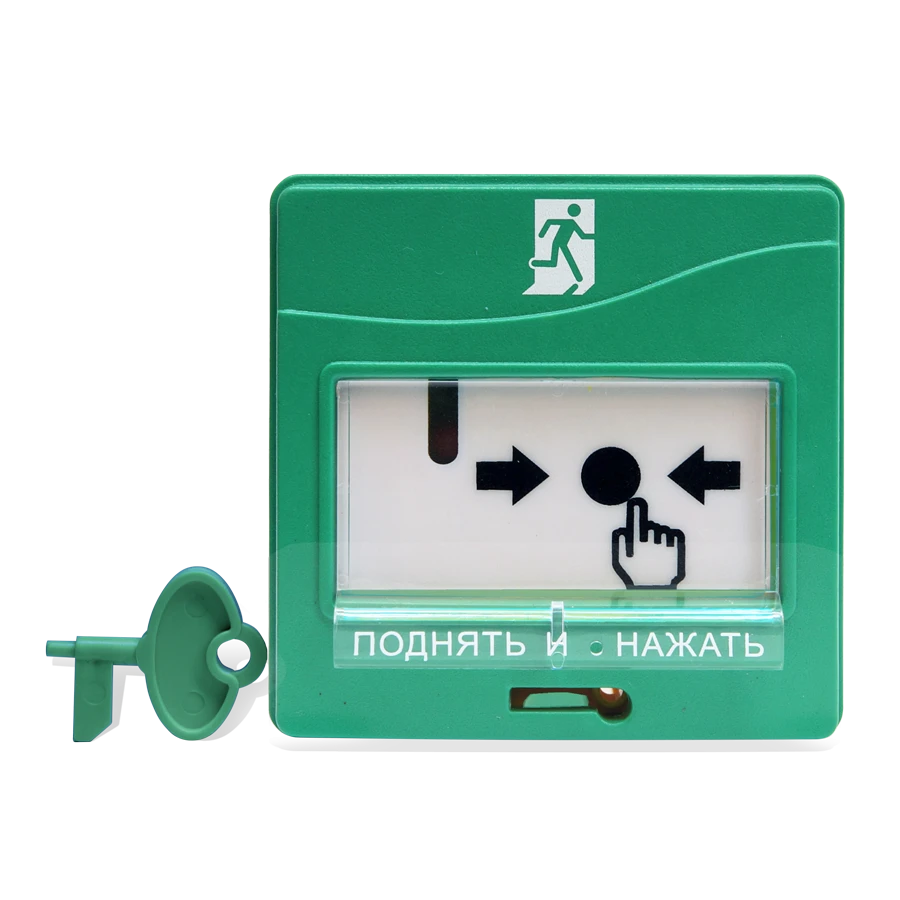

Remote Start Device for Emergency Exit Unlocking UDP 513-3M - Ensure Safety and Accessibility
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for signalling the unblocking of evacuation/emergency exits and for direct unblocking of evacuation/emergency exits by an additional switch built into the SDP. It works in the alarm loop of the S2000-4, Signal-20P, S2000-ASPT, Signal-10, Signal-20M or similar control and monitoring devices, providing the loop voltage up to 30 V and limiting the loop current not more than 25 mA. Functions: control of the state of the key; transmission of notices to the receiving and control unit (device); control of the electric lock of the emergency or evacuation exit; indication of operating modes (state of the key) on the built-in light indicator.
Specifications
Maximum power supply voltage
max. 30 V
Rated supply voltage
24 V
Consumption current in standby mode
max. 50 µA
Switched current
max. 25 mA
Switchable current by auxiliary switch
not more than 2 A
Switchable voltage by auxiliary switch
max. 30 V
Maximum active resistance of alarm loop wires
Not more than 100 ohms
Minimum insulation resistance between the wires of the alarm loop
at least 50 kOhm
Maximum active resistance of wires of the output control circuit
Not more than 100 ohms
Minimum insulation resistance between wires of the output control circuit
at least 50 kOhm
Protection degree of the shell according to GOST 14254-2015
IP40
Operating temperature range
-30 to +55 ºC
Overall dimensions of the device
not more than 94x94x54 mm
Instrument weight
max. 0.2 kg
Average lifetime of the device
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
