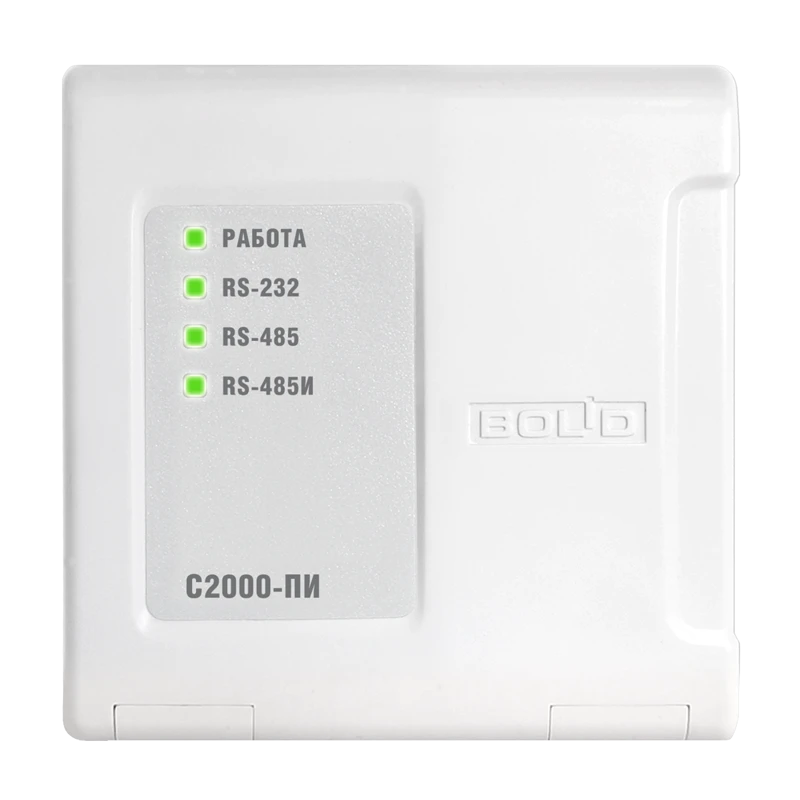

RS-485/RS-232 Interface Converter for Signal Conversion and Isolation
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for conversion of RS-232 interface signals into signals of two-wire trunk RS-485 interface, for extension and galvanic isolation of RS-485 interface line. The PI is powered from the USB port of the computer or from an external power supply.
Specifications
Number of power inputs
1 pcs
DC supply voltage, from computer (USB port)
5 V
DC supply voltage, from auxiliary source
from 10 to 28 V
Current consumption, from computer
Not more than 160 mA
Current consumption, from 12 V source
max. 120 mA
Consumption current, from 24 V source
Not more than 60 mA
Data transfer rate
300, 600, 1200, 2400, 4800, 9600, 9600, 19200, 38400, 57600, 115200 Bauds
Protection degree of the shell according to GOST 14254-2015
IP40
Operating temperature range
from minus 40 to +55 °?
Overall dimensions
Not more than 102x107x39 mm
Weight
max. 0.2 kg
Average service life
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
