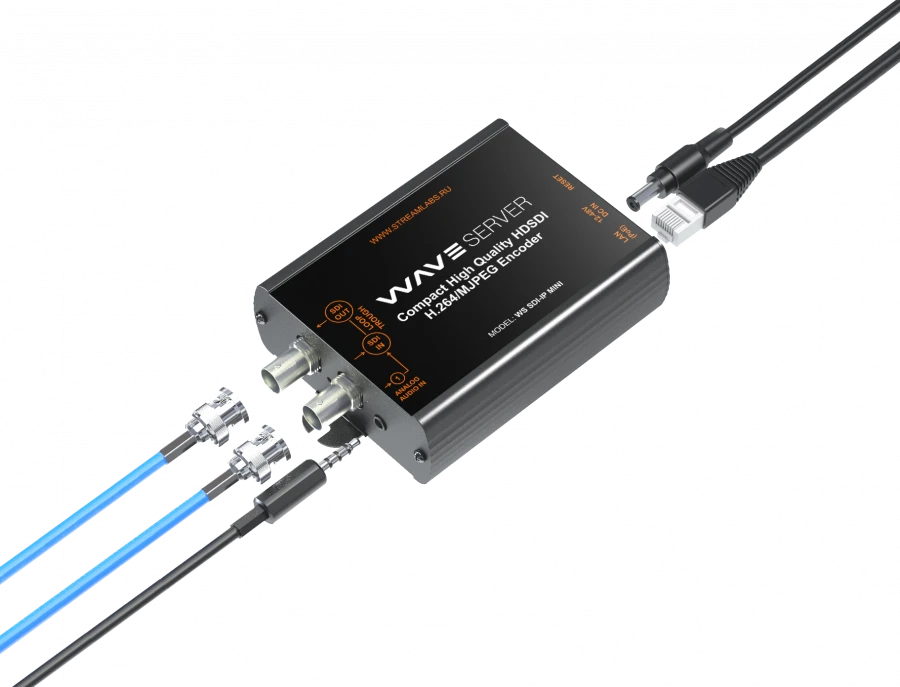

Compact Single-Channel Real-Time Signal Encoder VCL-SDI MINI for SD/HD-SDI Applications

Compact single-channel real-time encoder of SD/HD-SDI signal (with built-in audio support). Encoding and transmission of the signal is possible with a resolution of up to 1080p. This device can be used for a wide range of applications (Digital Signage, video surveillance, etc.).

Features and benefits: SD/HD-SDI input + output for pass-through signal output (ByPass) two encoding modes - H.264 SD/HD MPEG-TS or simultaneous in H.264/MJPEG support HD resolution 1920x1080i/60(50), 1920x1080p/60(50), 1920x1080p/30(25), 1280x720p/ 60(50) two audio coding modes - Mono Codec G.711 for video surveillance systems and Stereo Codec AAC for use in TV solutions.

wide range of stream compression rate settings - 32kbps ~ 10Mbps ONVIF compatibility power supply via PoE (Power Over Ethernet: 802af) or external power supply 12-48v.
