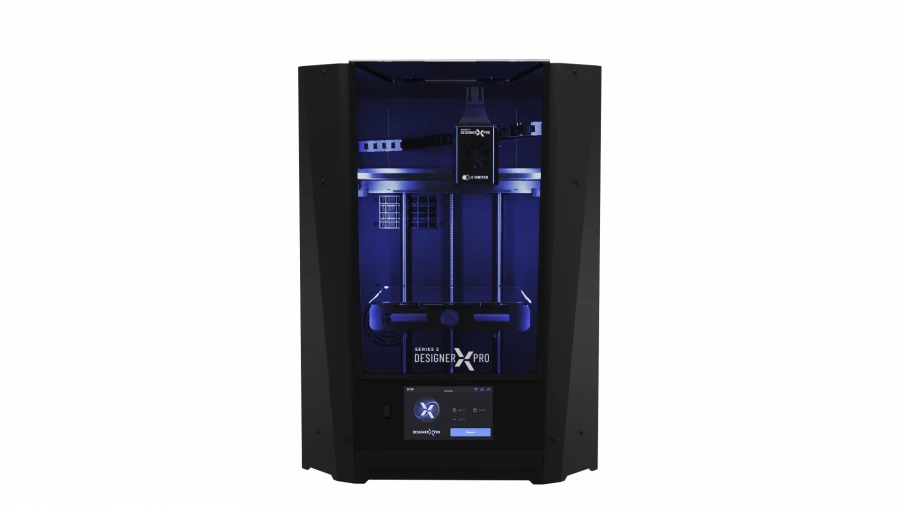

PICASO 3D Designer X PRO S2 - High-Performance 3D Printing Solution

Material Extrusion 3D Printers

Manufacturer:PICASO 3D LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designer X PRO S2 is the flagship 3D printer from Russian company PICASO 3D. The device is equipped with two nozzles working with JetSwitch technology. The printing area is 201x201x210 mm and the printing speed is up to 150 cm3/hour.

The range of consumables includes any thermoplastics, up to the melting point of 430 degrees. Implementation of this tool allows to reduce the time of implementation of new developments by times and to save money considerably. The main competitive advantage is the X platform control systems implemented in the device.

The systems of profiles, control of the first layer, plastic feeding are for the first time applied in the segment of desktop professional equipment by PICASO 3D. The presence of sensors and systems of control over the printer's operation allows to minimise the percentage of "defective" printing and achieve a quality that was previously unavailable for desktop 3D printers.

Specifications

Type of printer control

Control panel with colour touch screen display on the printer body

Availability of autodiagnostic system

Armoured glass

Availability of plastic feeding control system

Armoured glass

Presence of visual warning system

Armoured glass

Presence of layer time control system

Armoured glass

Availability of printing surface control system

Armoured glass

Availability of heat sink temperature control system

Armoured glass

Type of print platform

Heated removable, fixed on the platform

Cooling of the print area

Bilateral

Availability of the function to continue printing after a power failure

Armoured glass

Built-in drying mode function

Armoured glass

Availability of a print platform control system

Armoured glass

Availability of a system for controlling the presence of plastic

Armoured glass

Database of material profiles

More than 70 profiles available

File types

*.plgx

Maximum working platform temperature

150 °C

Minimum layer thickness

10 microns (0.01 mm)

Travelling speed of the print head

Up to 150 mm

Number of print heads

1 pcs

Autolevelling

Z-axis autolevelling

Auto-tracking

Nozzle auto-tracking X - Y

Nozzle inversion

Selection of active nozzle

Continuation of printing with the second nozzle

Hot-swap mode

Active heated chamber

80 °C

Number of materials to be loaded simultaneously into the extruder

2 pcs

Diameter of the plastic bar to be loaded

1.75 mm

Maximum extruder operating temperature

430 °C

Printing area

201x201x210 mm

Printing technology

FFF (Fused Filament Fabrication)

Supported materials

PA (6/12)

Software

PICASO 3D Polygon X™

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
