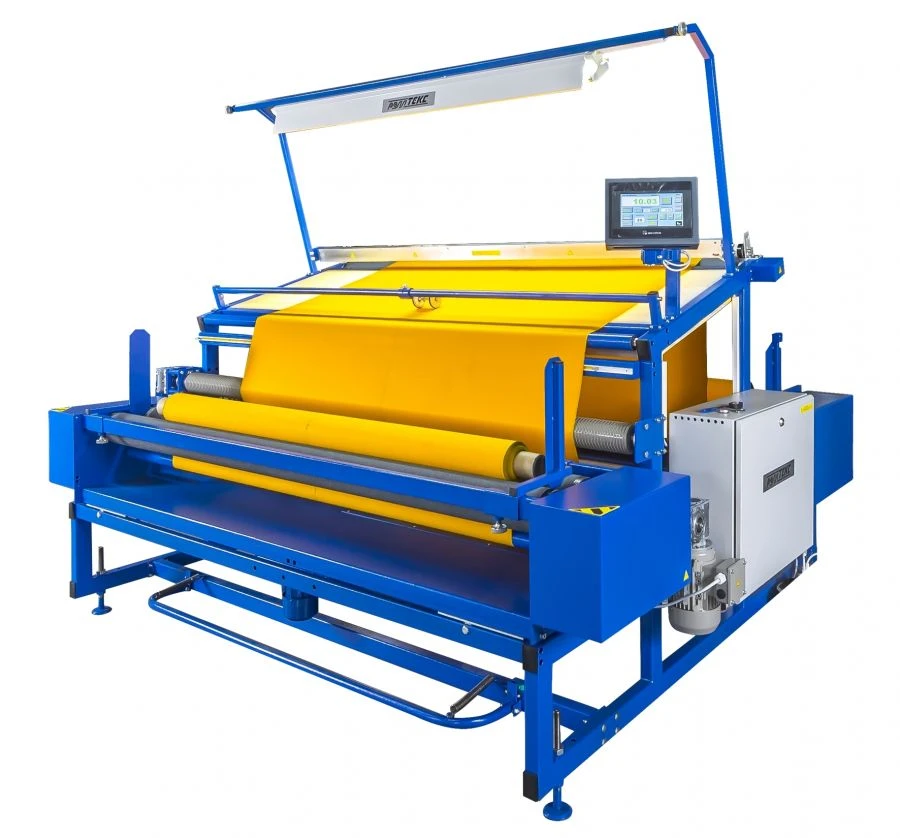

Measuring and Reeling Machine Model B01.46 for Quality Assurance

The measuring and rejecting machine model B01.46 is designed for rewinding from roll to roll, metre measurement and quality control of slightly elastic and inelastic materials. The measuring and rejecting machine model B01.46 provides rewinding of fabric rolls with diameter up to 600 mm and weight up to 60 kg. It is available in roll widths from 1800 mm / up to 2000 mm / up to 2500 mm / 3200 mm / up to 3500 mm.

The machine is equipped as standard with a roll edge levelling system, automatic material stretch tracking system, electronic programmable metre counter, forward and reverse stroke with twisting into a roll, viewing screen with LED backlight, roll end sensor, unwinding axis. Additionally, the machine can be equipped with additional overhead lighting, bale winding density adjustment, device for static removal, ruler for visual measurement of bale width, manual or automatic cut-off knife, Astra software for accounting of unwound bales, systems....
