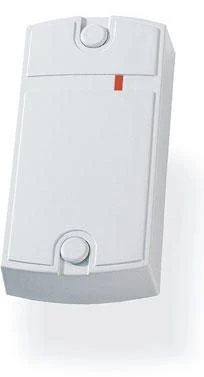

MATRIX-II Reader for Access Control Systems (Model MF-I) Available for Import

MATRIX-II Reader for Access Control Systems (Model MF-I) and Its Applications

Security and Fire Control Panels
Manufacturer: ABC LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Matrix-II reader (mod. E H) for ACS Matrix-II reader (mod. E K Net) for ACS. Matrix-II reader (mod. E K Wi-Fi) for ACS Matrix-II reader (mod. E K) for ACS Matrix-II reader (mod. E) for ACS

Description

The MATRIX-II reader (mod. MF-I) is used in access control and management systems (ACS) to transmit to the controller code brought to him the identifier (card, key fob, bracelet, etc.) standard Mifare protocol iButton (Dallas Touch Memory) or Wiegand. A distinctive feature of the reader is the support of "IronLogic - Protected" technology, which provides reliable protection of cards from cloning (for more details see www.ironlogic.ru - Ready-made solutions - IronLogic - Protected technology).

To realise the protected reading technology, apart from MATRIX-II reader (mod. MF-I) you will need Z-2 reader (mod. MF) (with special firmware), "IronLogic Object" card and blank cards (fobs) of Mifare standard to create pass cards.

Specifications

Operating frequency
13.56
Type of identifiers used
Mifare
Card/fob reading range
3...6 cm
Output protocol
iButton (Dallas Touch Memory), Wiegand
Remoteness of the reader from the controller via iButton protocol (Dallas Touch Memory)
15 m
Distance of the reader from the controller in Wiegand mode
100 m
Confirmation of card reading
Buzzer signal, two-color LED
Indication
internal and from external management
DC supply voltage
B1/B8 2100/900 MHz V
Current consumption in card standby mode
40 mA
Overall dimensions
85x44x18
Ambient temperature
- 40°C to +50°C
Class of containment
IP55

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
