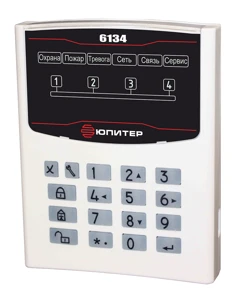

Jupiter-6134 Data Acquisition Device for Data Transfer Applications

Jupiter-6134 take-down device (hereinafter referred to as UWS) is designed to work with object devices via Touch Memory or RS-485 data transmission interfaces.
Variants of the TDS version:
"Jupiter-6134" - 4 alarm loop status indicators of the object device or partition;
"Jupiter-6135" - 8 status indicators II 1C of the object device or partition;
"Jupiter-6136 - 16 status indicators of the alarm loop of the object device or partition;
The ATC is designed for continuous round-the-clock operation in closed rooms, transmits the codes of the pressed keys to the object device, displays on the indicators the status of the object device and the state of the tamper switch, violation of communication with the object device and the security panel.
UBC must function normally with a change in supply voltage from 10 to 14 V, current consumption not more than 100 mA..
