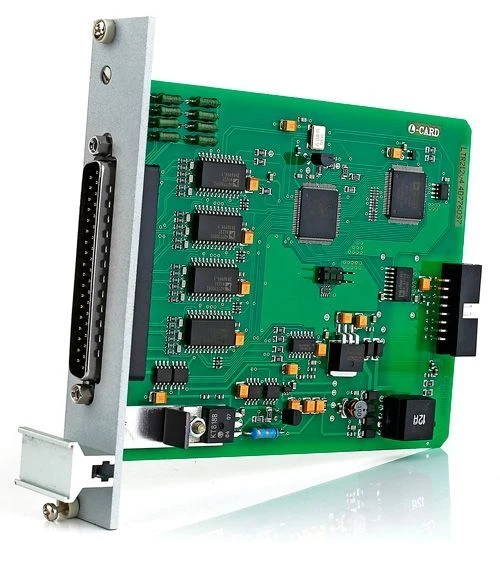

LTR212 Measuring Module for Voltage Measurement

Available for Import

LTR212 Measuring Module for Accurate Voltage Measurement and Power Supply

Electrical Measurement Systems

Manufacturer: L CARD LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Measurement modules LTR212 are designed to generate supply voltage and measure unbalance voltage of one or several DC bridges. They are part of the LTR measuring units. LTR212 is a specialised 24 bit/ 7,6 kHz ADC module for connection of up to eight load cells with resistance from 100 Ohm to 1 kOhm, designed for direct full connection and accurate measurement of unbalance voltage of bridge, half-bridge, quarter-bridge resistive sensors.

Specifications

Tolerance limits of relative error of DC voltage reproductions

±4 %

Nominal values of DC voltage of the reference voltage source

2.5 and/or 5.0 V

Limits of permissible relative basic error of measurements of unbalance voltage of direct current

from ±0.05 %

Measurement range of DC unbalance voltage

-80 mV to +80 mV V

Number of measuring channels

4 or 8 pcs
