Inductive Non-Contact Switch for Automotive Applications - ISBt A2A8-31P-4-LZ-C-VP1

Measurement and Control Devices

Manufacturer: TEKO OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

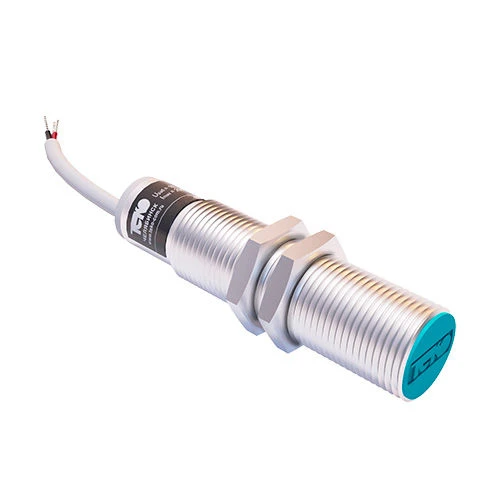

The inductive proximity switch (sensor) ISBt A2A8-31P-4-LZ-C-VP1 is designed for use in road transport. The switch is designed to meet the requirements of GOST 28751-90 "Electrical equipment of motor vehicles. Electromagnetic compatibility.

Conductive interference in power supply circuits. Requirements and test methods". The sensor ISBt A2A8-31P-4-LZ-C-VP1 can be operated in conditions of increased vibration.

Operating principle: When approaching to the sensitive surface of the sensor of the object of impact from any metal, the electromagnetic field is damped and the amplitude of oscillations of the generator is reduced, the threshold device (trigger) is activated and the electronic key of the sensor is switched, which performs switching of electrical circuits.

Specifications

Wiring diagram

3-wire

Special purpose

Road transport version

With special electrical parameters

Increased noise immunity

Working clearance

0...3.2 mm

Operating temperature range

-45...60 °C

Operating current range, Irab.

Less than or equal to 250 mA

Degree of protection according to GOST 14254-96

IP68

Comprehensive protection

Got it

Light indication

Got it

Connection / Connection

Cable 3x0,34mm , Length 2m*

Switching frequency, Fmax

900

Contact type / Output structure

PNP Closing

Voltage drop at Imax, Ud

Less than or equal to 2.5 V

Operating voltage range, Urab.

10...30 V

Case

8...12 mm

Length in mm

61 mm

Diameter of threaded body

M12

Housing material

D16T

Connection method

Cable

Nominal sensing distance

4 mm

Mounting type

Built-in

Enclosure size, DxWxDl

M12x1x61

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
