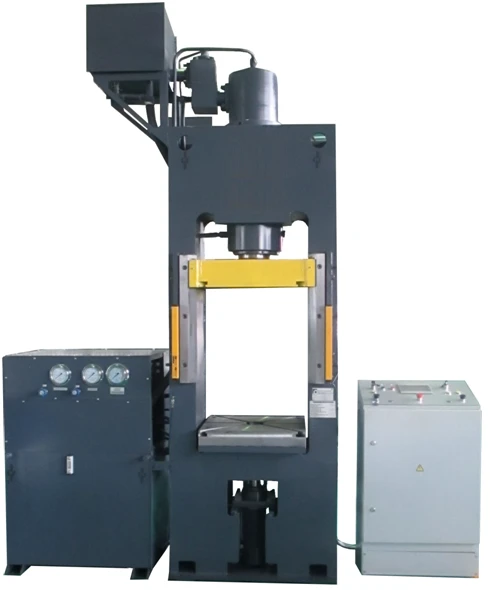

Hydraulic press for plastics model DE2430

Hydraulic Metal Presses

Manufacturer: YUMZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Hydraulic Press for Plastics Model DG2430 Hydraulic press for plastics, model DG2428 Hydraulic press for plastics model DG2432 Hydraulic press for plastics model DE2430 Hydraulic press for plastics model DE2428

Description

Hydraulic press model DE2430 is designed for direct (compression) and injection (transfer) pressing of products from thermosetting plastics. Hydraulic press model DE2430 can also be used for manufacturing of rubber products and for work with thin sheet metal. The press can be used in automotive, chemical, radio-technical, instrument-making industries. The press is characterised by high quality and long service life.

Specifications

Type of product according to PP RF 616

Hydraulic presses

Rated press force

1000 kN

Slider stroke

500 mm

Maximum distance between table and slider

800 mm

Table dimensions LxB

630×560mm

Rated force of the lower ejector

200 kN

Lower ejector stroke

200 mm

Slider idle speed downward, not less than

350 mm/sec

Slider idle speed upwards, not less than

200 mm/sec

Speed of working stroke of the slider at compression (direct) pressing, not less than

50 - 6.5 mm/sec.

Speed of working stroke of the slider at transversal (molding) pressing, not less than

6,5 mm/sec.

Speed of working stroke of ejector at compression (direct) pressing, not less than

100 - 30 mm/sec.

Speed of working stroke of ejector at transversal (injection molding) pressing, not less than

65 mm/sec

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
