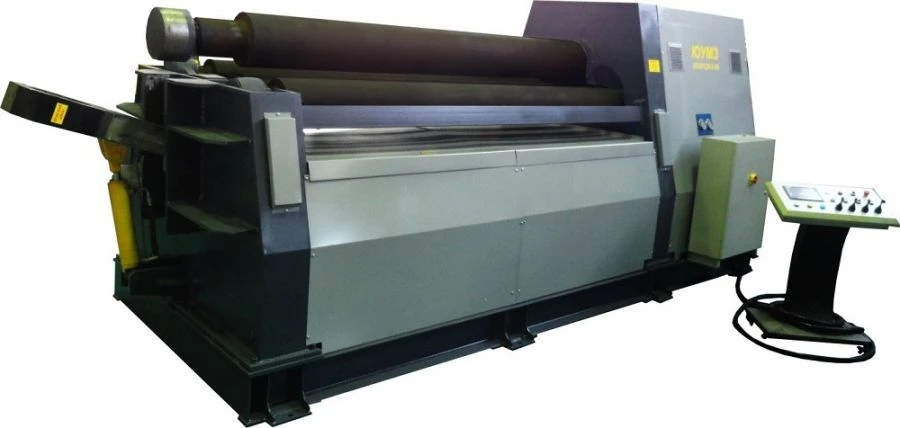

Hydraulic Four-Roller Bending Machine IB2222G.01 for Sheet Metal Fabrication

Machine sheet bending four-roll model IB2222G.01 is designed for the manufacture of cylindrical, oval and conical shapes of sheet metal by bending metal. The principle of operation of the four-roll sheet bending machine model IB2222G.01 consists in free bending of the sheet placed between the upper, side rolls and the lower roll. The sheet is securely fixed between the upper and lower rolls, while the side rolls have a vertical stroke.

The four-roll bending machine is indispensable for the production of chimneys, thermal insulation covers, drainpipes, air ducts and other voluminous parts of oval, cylindrical or conical shape from sheet metal blanks. The fastest and most accurate bends of the shell are performed on four-roll bending machines.
