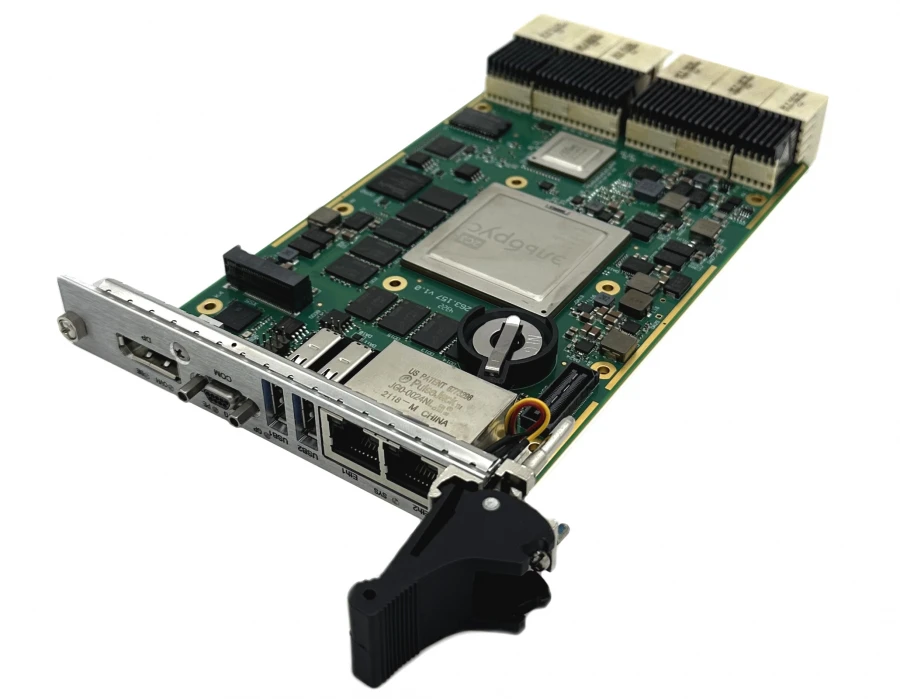

High-Performance CPC524 Processor Module for Embedded Systems Applications

Advanced Computing Devices

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

CPC524 processor module IMES.467444.165 (hereinafter referred to as the product) is made in CPCI Serial 3U design and is a highly integrated solution based on the domestic platform "Elbrus". The product is intended for use in real-time systems, production control and other systems for data acquisition and processing operating in harsh conditions and requiring reliability, information security and flexibility in support of various expansion interfaces. The product is used in forced air-cooled systems.

Specifications

Processor

Elbrus-2C3, 2000 MHz, 30 Watt

RAM

DDR4-2400 ECC, 2 channels, soldered, up to 16GB; 72-bit memory bus

Video output

Built-in video adapter; Support 2D and 3D acceleration; Video decode accelerators VXD, VP9D; Video encode accelerators VXE, VP9E; Support video modes up to 4096x2160@60Hz

PCI Express bus

One PCIe x4 Gen3 link goes to the PEX8725 PCIe switch; Three PCIe x4 Gen3 links from the switch go to slots 2-4 of the backplane; Two PCIe x2 Gen3 links from the switch go to slots 8-9 of the backplane; Two PCIe x1 Gen3 links from the switch

SATA interfaces

One SATA III interface is used to connect the on-board drive; One interface is brought out on the backplane, can also be switched to the M.2 connector when using the appropriate drive.

Ethernet interfaces

Two 10/100/1000Mbps ports on front panel; MAC level built into CPU, external PHY DP83867; One 1G Ethernet link brought out on backplane

USB interfaces

USB 3.0 (5Gbps) support; 2 USB-A interfaces on front panel; 2 interfaces on backplane slots 4 and 9.

COM port

Outputted to Micro-D9 connector on front panel

Accumulators

Soldered 32GB SATA III SSD; Interchangeable M.2 drive, with PCIe Gen3 x2 and SATA III drive capability

Real Time Clock

Audio Support

Support for HD Audio interface; Interface is brought out on the mezzanine connector

Hardware monitor

Implemented via I2C/SMBUS interface; Monitoring of supply voltages; Monitoring of CPU temperature; Monitoring of PCB temperature; Monitoring of power consumption

Indication

Board startup diagnostic LED; SATA drive access LED; Two software-controlled LEDs (user-defined); Board overheat indication LED.

Software compatibility with OS

OS "Elbrus"; OS Astra Linux "Leningrad"

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
