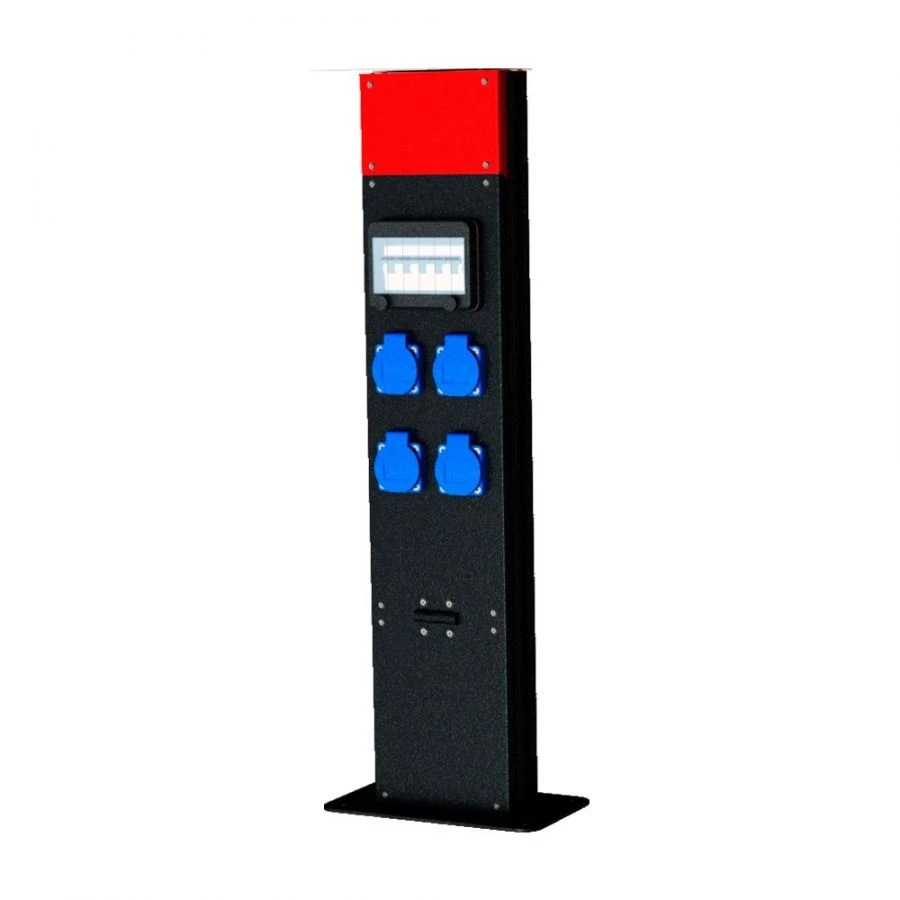

Floor Distribution Combination Module (Socket Column) T B08.001 for Efficient Power Distribution

Combination of CEE and Schuko sockets in a floor-standing housing made of 1.5 mm steel with aluminium profile with longitudinal slot for M10 nut. The enclosure is coated with black matt polyester powder paint. The column is equipped with safety automatics located under the window with UV protection.

The switchgear is designed for professional activities of construction, production, repair and other organisations associated with the simultaneous use of several units of power tools and electrical equipment. Specification of the hinged switchgear combination module T B08.001: Degree of protection: IP 41 Enclosure: Steel 1.5 mm (HxWxH) 70x160x750 Input: 6 mm² L terminal x 3 pcs.; 6 mm² N terminal x 1 pc.; 6 mm² PE terminal x 1 pc. Connectors: Schuko PCE Blue x 4 pcs.

Automation: Legrand 6kA 16A 1p x 4 pcs. Rated voltage AC 380 V Maximum power 4x 3,6 kW The energy tower is manufactured in Russia, EDS Industrial. The design of this switchgear...
