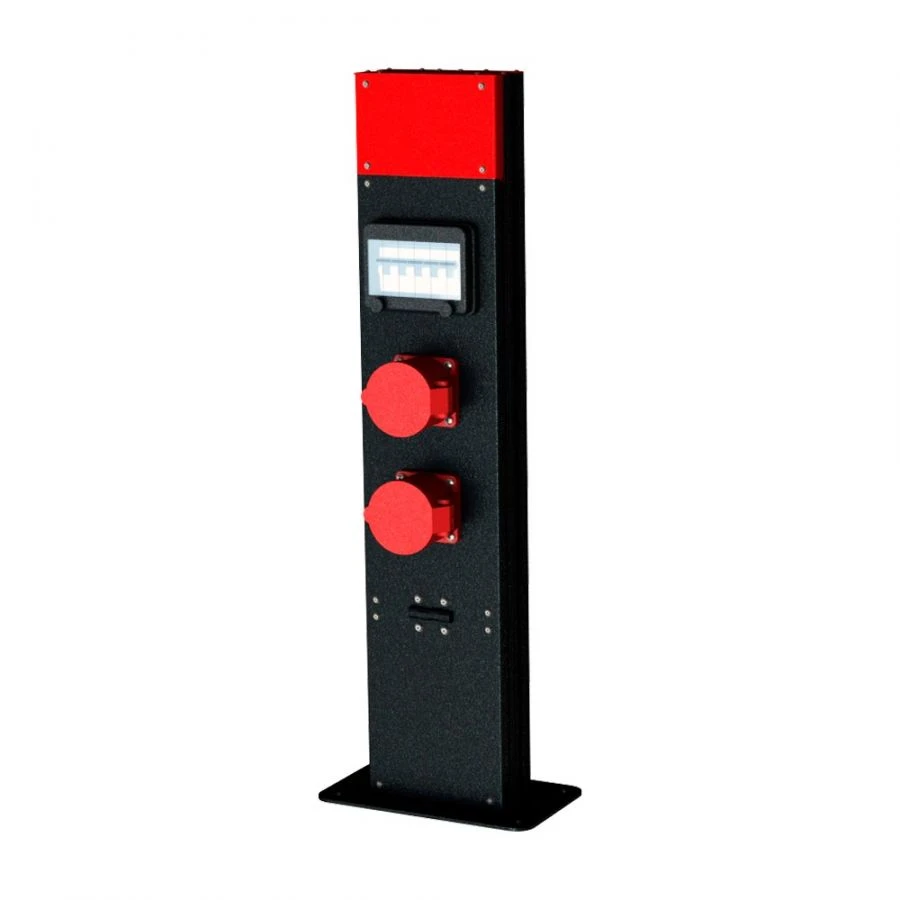

Floor Distribution Combination Module for Efficient Power Distribution - T B08.004

Combination of sockets of CEE standard in the case of floor version made of steel 1,5 mm. with aluminium profile with a longitudinal slot for M10 nut. The enclosure is coated with matte black polyester powder paint.

The column is equipped with safety automatics located under the window with UV protection. The switchgear is designed for professional activities of construction, production, repair and other organisations associated with the simultaneous use of several units of power tools and electrical equipment. Specification of the hinged switchgear combination module T B08.004: Degree of protection: IP 41 Enclosure: Steel 1.5 mm (HxWxH) 70x160x750 Input: 16 mm² L terminal x 3 pcs.; 16 mm² N terminal x 1 pc.; 16 mm² PE terminal x 1 pc.

Connectors: CEE 32A 5Pin 400V x 2 pcs. Automation: Legrand 6kA 32A 3p x 2 pcs. Rated voltage: AC 380 V Maximum power: 2x 7,2 kW.
