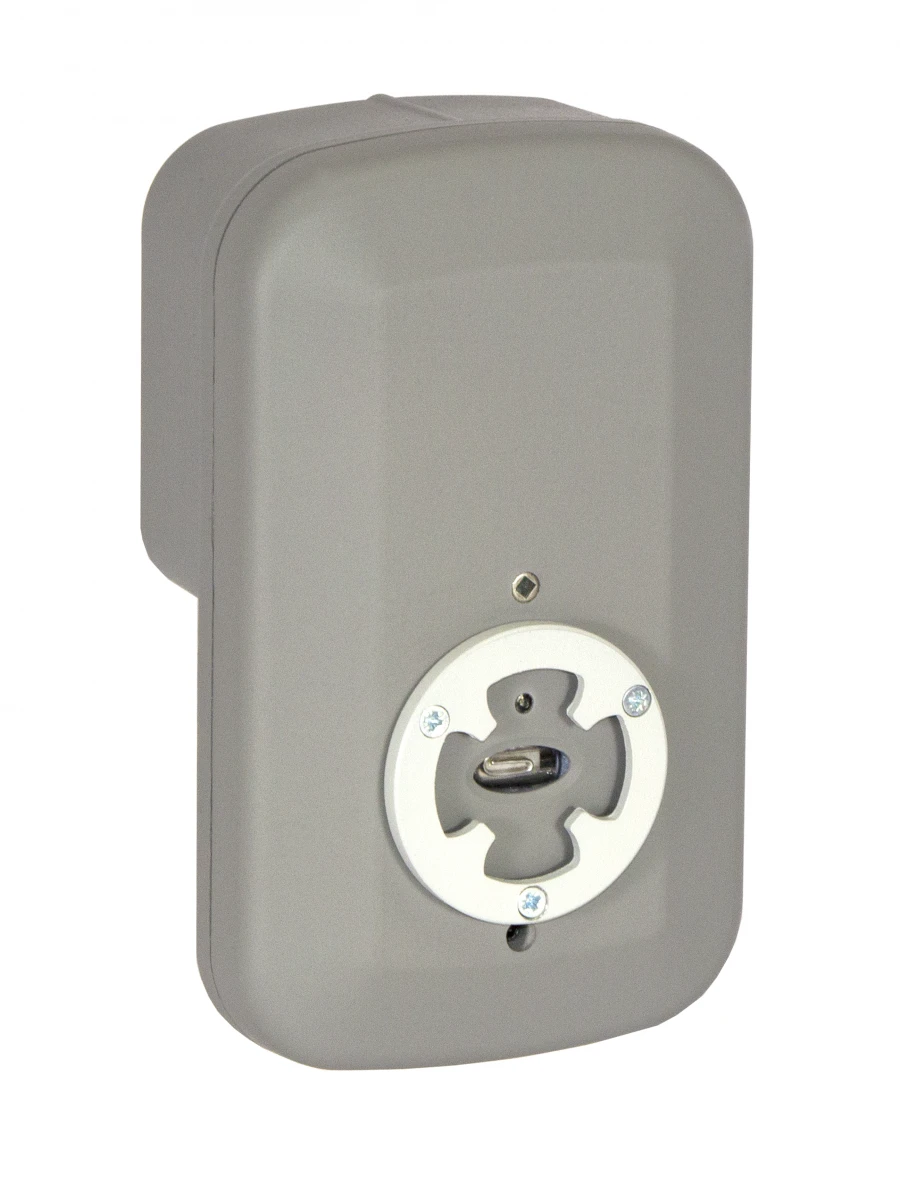

Flame Detector Spectron-601-Exm-C Available for Import

Flame Detector Spectron-601-Exm-C for Early Fire Detection

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The Spectron-601-C-Exm is a fire flame detector of infrared/ultraviolet (IR/UV) ranges. The detector housing is made of high-strength ABS plastic and has a degree of protection IP68 from the external environment. It is made in accordance with the requirements for explosion-protected equipment with the type of explosion protection "sealed with compound m", having the explosion protection level "explosion-proof". It can be used in hazardous areas of classes "1", "2", "21" and "22" of closed premises and outdoor installations.

Specifications

Weight
200 year
Overall dimensions
84x158x73 mm
Temperature range
–55 ÷ +75 °C
Degree of protection of the shell, IP
68
Operating temperature range
75 °C
Operating temperature
(55);+75 °C
Designation
IR/UV MULTI-BAND FLAME DETECTOR IP329/330
Assignment
Recommended for use in fire alarm systems and fire extinguishing systems in closed facilities and open installations
Explosion protection marking
1Ex mb IIC T6 Gb X / Ex mb IIIC T85ºC Db X
Housing material
ABS plastic
Power supply voltage
9...26 V
Sensitivity levels
Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
