Available for Import

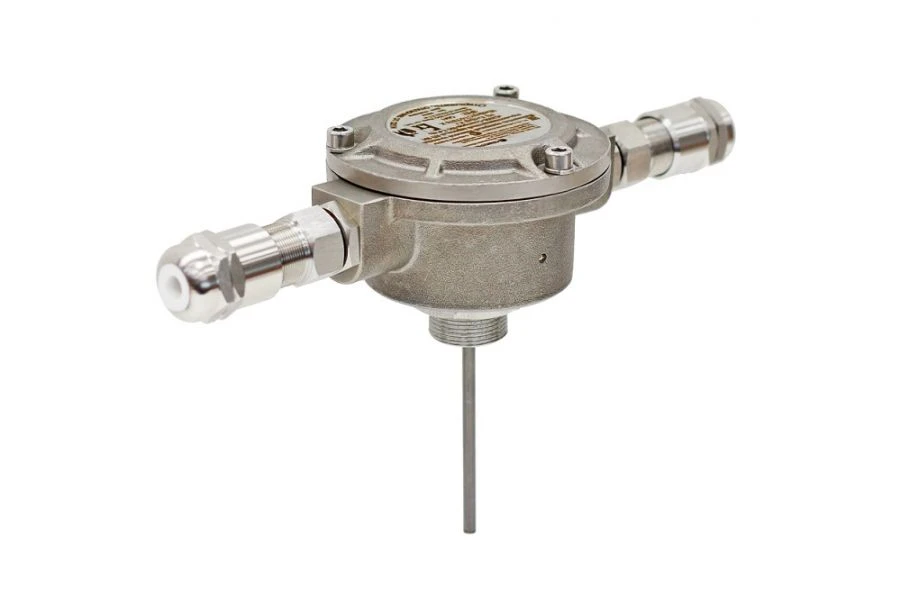

Heat Fire Detector Spectron-101-R-Exd-N-Modbus for Fire Safety Applications

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire thermal point detector Spektron-101-R-Exd-N Spectron-101-T-R-Exd-N thermal point fire detector

Description

Designed to detect fires accompanied by the release of large amounts of heat. Upit - 9...28 V. IP66/IP68.

Temperature range from -75°C to +85°C. Temperature range of sensitive elements -75°C ... +150°C.

Programmable (adjustable) as differential, maximum differential in temperature classes A1, A2, A3, B, C, D, E, A1R, A2R, A3R, BR, CR, DR, ER. Self-monitoring function. Transmission of a fault signal on the alarm loop.

Overall dimensions 126x154x104 mm. Casing - stainless steel. Explosion protection marking of the electronic block, sensitive element BR Ex db [ia Ma] I Mb X/ 1Ex db [ia Ga] IIC T6...T4 Gb X/ Ex tb [ia Da] IIIC T85ºC...T135ºC Db X Digital interface via Modbus/RTU protocol.

Specifications

Weight

2.3 kg

Overall dimensions

126x154x104 mm

Temperature range of the sensing element

(75);+150

Degree of protection of the shell, IP

Operating temperature range

85 °C

Operating temperature

(75);+85 °C

Designation

IP 101-10-R Fire thermal point fire detector

Assignment

Designed for detection of fires accompanied by the emission of large amounts of heat.

Explosion protection marking

PB Ex db [ia Ma] I Mb X/ 1Ex db [ia Ga] IIC T6...T4 Gb X/ Ex tb [ia Da] IIIC T85ºC...T135ºC Db X

Housing material

stainless steel

Power supply voltage

9...28 V

Sensitivity levels

T6/T5/T4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
