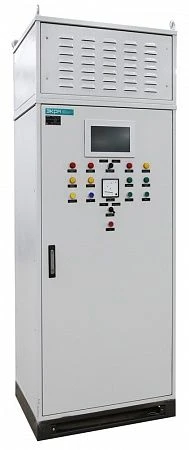

Digital Static Thyristor Exciter Model SPVD

Available for Import

Digital Static Thyristor Exciter SPVD for Effective Voltage Regulation

Generator Spare Parts

Manufacturer: EKRA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

designed to supply the excitation winding, control and automatic regulation of excitation current during direct, reactor, frequency and soft start, synchronous operation and in emergency modes of synchronous motors with power from 200 to 12500 kW with brush excitation system. Exciter is made by bridge or zero rectification schemes with power supply from AC network through power matching transformer.

Specifications

Overall dimensions

2160x800x600 mm

Weight

350 kg

Cooling of thyristor modules

Air

Power consumption

32 W

Rated field current

315 A

Rated AC supply voltage

380 V

Rated rectified voltage

230 V

Maximum permissible boost duration

Degree of protection

upper compartment - IP21

Nominal frequency

SBVVBG
