Digital Panel Meter for Measuring Current and Voltage - Model Щ23.7

Electrical Measuring Devices

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

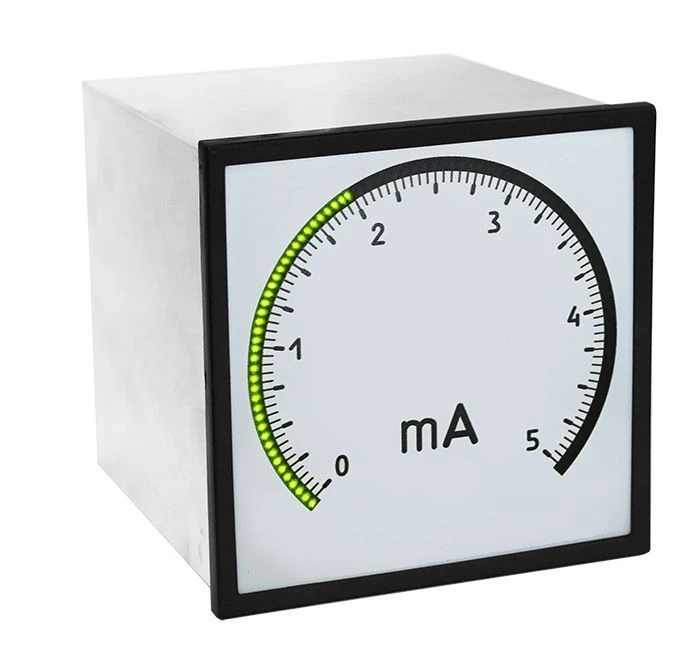

The panel-mounted digital electrical measuring device Shch23.7 is designed to measure current or voltage in DC circuits for operation as part of the technical means of nuclear power plants, as well as in other industries. The device can be used in a set with primary converters for measurement of non-electrical quantities, if the ranges of the output electrical signal of primary converters correspond to the ranges of the input signal of the devices. The device provides the possibility of: selecting the input signal measurement range, changing the reading range and unit name, programming the thresholds of discrete-analogue digital-analogue display colour change, transmitting information to computing devices via RS485 interface (Modbus RTU, original protocol). The device is made in a metal case of panel mounting. Safety class of the devices: 2, 3, 4 according to NP-001-2015.

Specifications

Overall dimensions, mm

100×100×83

Input signal measurement ranges

0...75 mV (-75...0...75 mV), 0...200 mV (-200...0...200 mV), 0...1 V (-1...0...0...1 V), 0...10 V (-10...0...10 V), 2...10 V, 0...5 mA (-5...0...0...5 mA), 0...20 mA (-20...0...20 mA), 4...20 mA (-12...4...20 mA).

LED indication

Discrete-analogue DUT (counting device); number of single indicators of discrete-analogue DUT, type of indicator: 91, risk (bar); type of discrete-analogue DUT: arc; colour of indicators: red, yellow, green; scale illumination (except versions)

Basic error

±1,0%

Galvanic isolation of input circuits, interface circuits and power supply circuits

Got it

RS485 communication interface

Quantity: 1; Modbus RTU protocol, original protocol

Power supply voltage

(24 ± 4) VDC

Power consumption from the power supply circuit, not more

2,8 V-A

Reprogramming

Via "Configurator" program (RS485 interface)

Operating temperature range

From -10 to +50 °C (relative humidity 98 % at +35 °C)

Degree of protection

IP20

Safety Class

2, 3, 4 according to NP-001-2015

Mounting

In the shield

Inspection interval

6 years old

Warranty period of operation

24 mos.

Average service life, at least

15 years

Average MTBF

150000 ?
