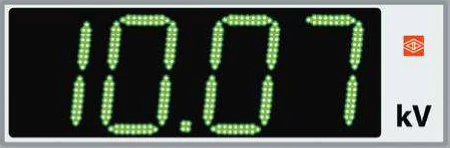

Digital Information Display T54 for Electrical Measurements

Available for Import

Digital Information Display T54 for Measuring Electrical and Physical Values

Electrical Measuring Devices

Manufacturer:ELECTROPRIBOR OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Digital display boards T54 are designed to measure and display any electrical and physical quantities (for example: AC or DC current, voltage, pressure, temperature, frequency, etc.), as well as values received in digital form via RS485 interface under control of Modbus RTU protocol. Advantages: maximum parameter display range from minus 1999 to plus 9999;
change of operating mode settings by remote control or via RS485 interface;
brightness control (12 brightness levels);
setting min and max settings;
programming of input signal parameters, change of display scale;
formation of discrete signal for control of switching equipment.

Specifications

Overall dimensions, mm

500x170x40

Weight, kg, not more

1,6

Parameter display

Measured value of input signals (any electrical and physical quantities); information received via RS485 interface; temperature value (optional)

Input signal

Direct current and voltage: 60 mV; 75 mV; 100 mV; -75...0...75 mV; 5 V; 10 V; 20 V; 50 V; 100 V; 200 V; 250 V; 500 V; 2 mA; 5 mA; 10 mA; 20 mA; 4...20 mA; -5...0...5 mA; AC current and voltage: 100 mV 5 V; 10 V; 20 V; 50 V; 100 V; 200 V; 250 V; 380

Maximum reading range

-1999 to +9999

Conversion time

0,5 ?

Basic error limits

± 0,5 %

Galvanic isolation of input and output circuits, power supply circuits

Got it

RS485 communication interface

Quantity: 1; Modbus RTU protocol

Discrete outputs

Quantity: 1 DC voltage 300V, 100mA or AC voltage 200V, 100mA

Height of the indicator sign

140 mm

Power supply voltage

220VU - from 85 to 253 V AC with frequency (50 ± 0,5) Hz or from 120 to 265 V DC; 24VN - from 18 to 36 V DC.

Power consumption from the power supply circuit, not more

17 B-A

Reprogramming

By remote control; via RS485 interface

Operating temperature range

From +5 to + 50 °C

Degree of protection

IP50

Average service life, at least

10 years

Average MTBF, not less than

50000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
