Measurement Converter E849EL for Accurate Measurement of Active and Reactive Power

Electrical Measuring Devices

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

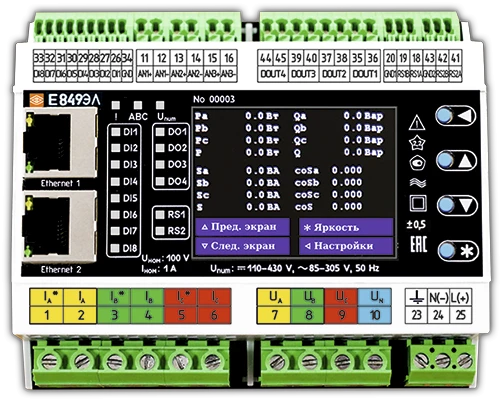

E849EL converters are designed to measure and convert active and/or reactive power in single-phase and three-phase 3- and 4-wire AC power networks into unified DC output signals and a sequence of digital signals for transmission via RS485 interfaces (IEC 60870-5-101 protocols with time stamp, Modbus RTU), Ethernet (protocols IEC 61850-8-1 (MMS), IEC 60870-5-104 with time stamp, Modbus TCP). Converters can be used for: active, reactive and active/reactive power control; measurement of active and reactive energy (given/received, with accumulation); monitoring and control of power quality. The converter supports the IEC 61850-8-1 digital substation protocol (MMS). E849EL is included in the State Register of SI of the Russian Federation No. 66759-17. Inter-test interval: without LCD - 11 years; with LCD - 8 years.

Specifications

Mounting

DIN rail 35 mm

Performances

General industrial; for operation at NPP (safety class 4 according to NP-001-2015); for operation at sea vessels (OM2)

Inspection interval

11 years (with LCD display - 8 years)

Warranty period of operation

24 mos.

Average service life, at least

20 years (with LCD display - 15 years)

Average MTBF

250000 h (with LCD - 150000 h)

Bluetooth (for converters of "L" version (overall size 162×91×61 mm))

Quantity: 0, 1; Bluetooth 4.0 (connection with devices with interface version not lower than 2.1+ EDR class 2 (SPP profile available); line of sight distance - not more than 10 metres).

GPS/GLONASS synchronisation module (for transmitters of "L" version (overall size 162×91×61 mm))

Built-in GPS/GLONASS receiver (antenna and cable are not included); Connector type - SMA-M; Synchronisation accuracy - not more than 0.1 ms.

Temperature sensor (for transmitters of version "L" (overall size 162×91×61 mm))

Type DS18B20 (included in the delivery set); cable length - 3 m; ambient temperature measurement: from -50 °C to +70 °C; transmission via interfaces to external devices and display on LCD (if available)

Overall dimensions, mm

108×91×57; 162×91×61 (version "L")

Weight, kg, not more

0,6

Measurement of single-phase and three-phase network parameters

Active power, reactive power, total power, power factor, mains frequency.

Measurement of active and reactive energy

Active energy of forward and reverse direction; Reactive energy of forward and reverse direction

Measurement of power quality parameters

Duration and depth of voltage dip; duration of voltage interruption; duration of temporary overvoltage; frequency deviation

Display of information

LCD, colour LCD, 46.7x35.4 mm (2.2''), single LED indicators

Input signals

1 A; 5 A (0.02 to 2.0-Inom); (phase/line): 57.7/100 V, 220/380 V, 230/400 V (0.02 to 1.2-Unom); 45 to 55 Hz

Measurement time

0.1 sec.

Basic error

By power: ± 0,5 %; by frequency: ± 0,01 Hz; by analogue output: ± 0,5 %

Galvanic isolation of input and output circuits, power supply circuits, interfaces

Got it

RS485 communication interface

Quantity: 1, 2; Protocols: IEC 60870-5-101 (with time stamp), Modbus RTU

Ethernet communication interface

Quantity: 0, 1, 2; 100BASE-TX; protocols: IEC 61850-8-1 (MMS), IEC 60870-5-104 (with timestamp), Modbus TCP (Note: Only one Ethernet interface supports IEC 61850-8-1 (MMS)).

Analog output

Quantity: 0, 1, 2, 3; reprogrammable ranges: 0...5 mA, 4...20 mA, 0...20 mA, 0...2.5...5 mA, 4...12...20 mA, -5...0...+5 mA, 0...10...20 mA

Time synchronization

Ethernet (SNTP protocols, IEC60870-5-104 with time stamp), RS485 (IEC 60870-5-101 with time stamp); counting accuracy not more than 10 ms; in the absence of synchronisation not more than 0.3 sec./day.

Event logs

Log of switching on/off the device; Log of electric energy quality indicators; Event log of measured parameters; Event log of discrete inputs and relay outputs (up to 280 events with automatic overwriting of earlier events at up to 1511841:Log of measureme

Storage of measurement results

On PC to log file with .csv extension using "Configurator" software

Discrete inputs

Quantity: 0, 8. Voltage 24 V, current 10 mA, "dry contact". Voltage 220 V, resistance of one discrete input - at least 0,8 Mohm, "wet contact" (requires an external source of DC 220 V) - for gab. size 162×91×61 mm. For

Discrete relay outputs

Quantity: 0, 1, 2, 3, 4; NC contact with parameters ~250 V, =30 V, 5 A Note: For inverters with special version "L" (overall size 162×91×61 mm) there is no version with 4 digital outputs.

Power supply voltage

24VH - (24+12/-6) VDC; 220VU - 85 to 305 VAC, frequency (50 ± 0.5) Hz or 110 to 430 VDC; measuring circuit - 85 to 305 VAC, frequency (50 ± 0.5) Hz

Consumption power, not more

Power supply circuit at rated input signals: 8 V-A; for series circuit: 0.1 V-A; for parallel circuit: 0.05 V-A

Reprogramming

Via "Configurator" software (RS485, Ethernet interface); via web-interface (Ethernet interface); via buttons on the front panel (if LCD display is available).

Operating temperature range

Without LCD display: -40 to +70 °C (relative humidity 98 % at +35 °C); with LCD display: -20 to +70 °C (relative humidity 90 % at +30 °C); with "Sea Register" acceptance: -40 to +55 °C (relative humidity 90 % at +25 °C)

Degree of protection

IP30 according to GOST 14254-2015

Electromagnetic compatibility

GOST R IEC 61326-1-2014 for class A

Interference immunity

GOST R IEC 61326-1-2014 for class A

Industrial noise level

GOST 30805.22-2013 for Class A

Resistance to mechanical influences

Group N1 according to GOST R 52931-2008; for devices with "Marine Register" acceptance in accordance with the requirements of RM RS (Annex 13, 14 p.10, part IV of Pr. RS/TN).

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
