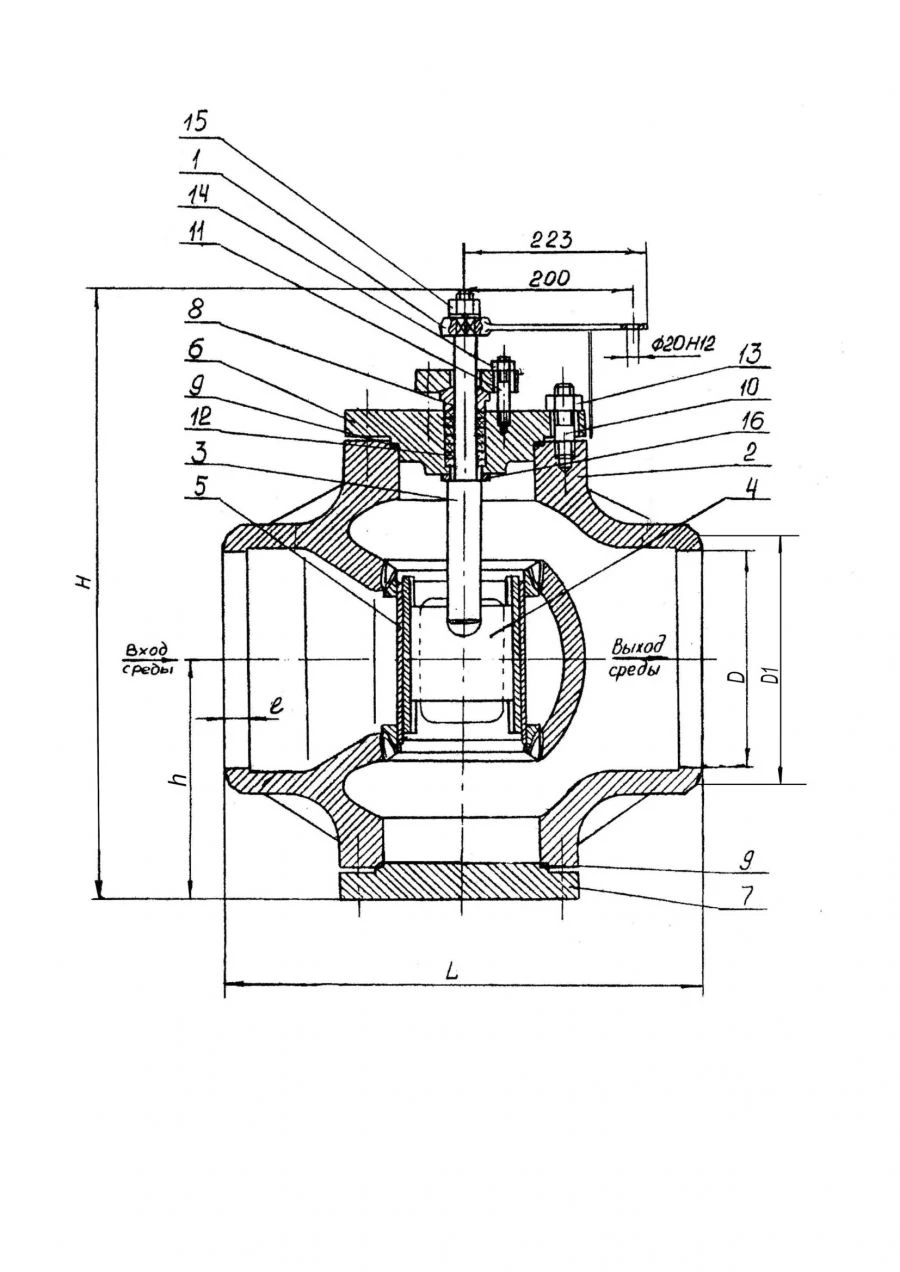

Control valve T-141bm Available for Import

Control valve T-141bm Wholesale

Regulating Valves
Manufacturer: TKZ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Regulating Valve T-137bm for Condensate Control Control valve T-135bm Control valve T-136bm

Description

Regulating valves are designed to regulate the flow and maintain the level of condensate in LDPE and HDPE. The operating principle of the regulating valve is based on the change of the regulated flow of the working medium by rotation of the spool around its own axis. The maximum angle of rotation of the spool is 90 degrees. Control of regulating valves is carried out by means of electric actuators ???.

Specifications

Weight
203 kg
Material
25L steel
Climatic version
U3, T3
Nominal diameter
200 mm
Throughput
272
Pressure rating
10 MPa
